FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.
Color:
Description

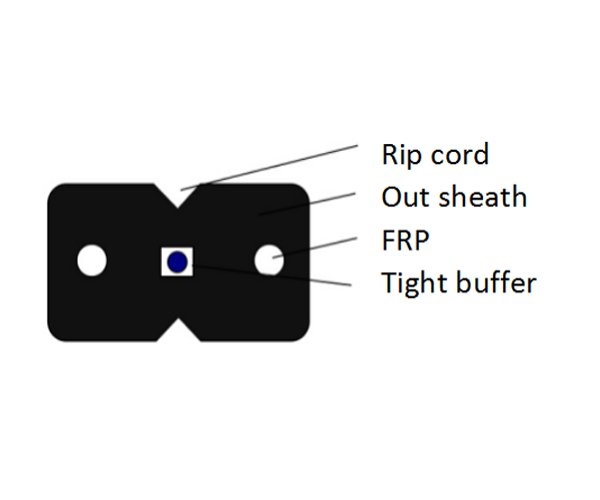

Cable construction
| No.of fiber | 1F | |||||
| Gross weight | 20kg/km | |||||
| SM fiber | Fiber type | G657A2 / G657B3 | MFD | 8.6～9.8um | ||
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% | |||
| Coating diameter |
245±5um | Fiber color | standard spectrum | |||
| Strength member | Material | FRP | Color | white | ||
| Diameter | 0.5mm | Qty | 2 | |||
| Tight buffer | Material | Nylon | Color | white | ||
| Diameter | 0.9mm | |||||
| Out sheath | Material | LSZH | Color | black | ||
| Diameter | 2.5 (±0.1) *4.0mm (±0.1) | Thickness | ≧0.5mm | |||
Fiber Color
| No. | 1 |
| Color |
Cable mechanical and environment characteristics
| Tensile strength | Long term（N） | 40N | ||||
| Short term（N） | 80N | |||||
| Crush load | Long term（N） | 500N/100mm | ||||
| Short term（N） | 1000N/100mm | |||||
| Bending radius | Dynamic | 20D | ||||
| Static | 10D | |||||
| Temperature | -20℃～+70℃ | |||||
Fiber Performance
| Fiber style | Unit | SM G652D | MM 50/125 | OM3-150 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
