QF62DW-1 series of the passive optical terminal box could be operated conveniently. In Addition, high safety coefficient and full function of the product make it very popular.
Color:

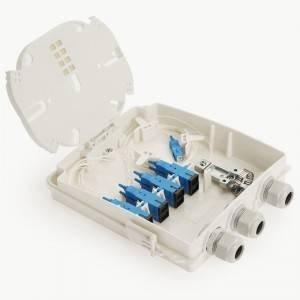

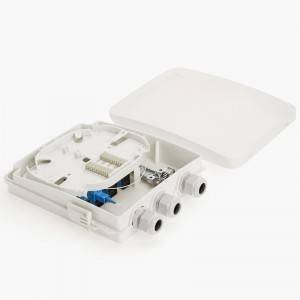

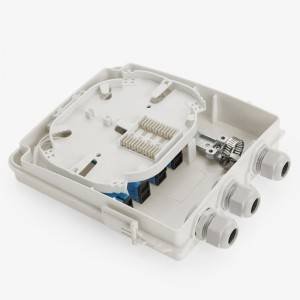

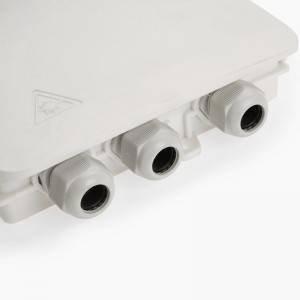

Optical Splice Closure for 2 Core Wall Mounting Fiber Terminal Distribution Box QF62DW-1
QF62DW-1 series of the passive optical terminal box could be operated conveniently. In Addition, high safety coefficient and full function of the product make it very popular.
Product Details
1. General cables are able to work with this terminal box, namely with a diameter of 12mm, “8” figure or 3mm soft cable.
2. Max capacity depends on what kind of splitter or adapter be kitted. Max number is 16 core.
3. 1:8 SC or 1:16 LC micro splitter is suitable, and it also can be installed with 8 pieces of LC duplex adapters.
4. Mechanical seal is commonly used to be installed at outdoors by wall mount.
5. The box is designed to be flipped over with a unique ‘slider’ structure, small size with full function, easy to use.
Product parameters
| Type | QF62DW-1 | Size(mm) | 210X175X50 |
| Protection grade | IP55 | Max capacity | 16F |
Ordering guide
| Type | size(mm) | weight(Kg) | Inner carton size(mm) | Out carton size(mm) |
| QF62DW-1 | 210X175X50 | 0.5-0.6 | 215x180x50 (1PCS) | 560x450x275(30PCS) |
