24 Core SM G652D Optical Power Composite Cable
Color:
Description

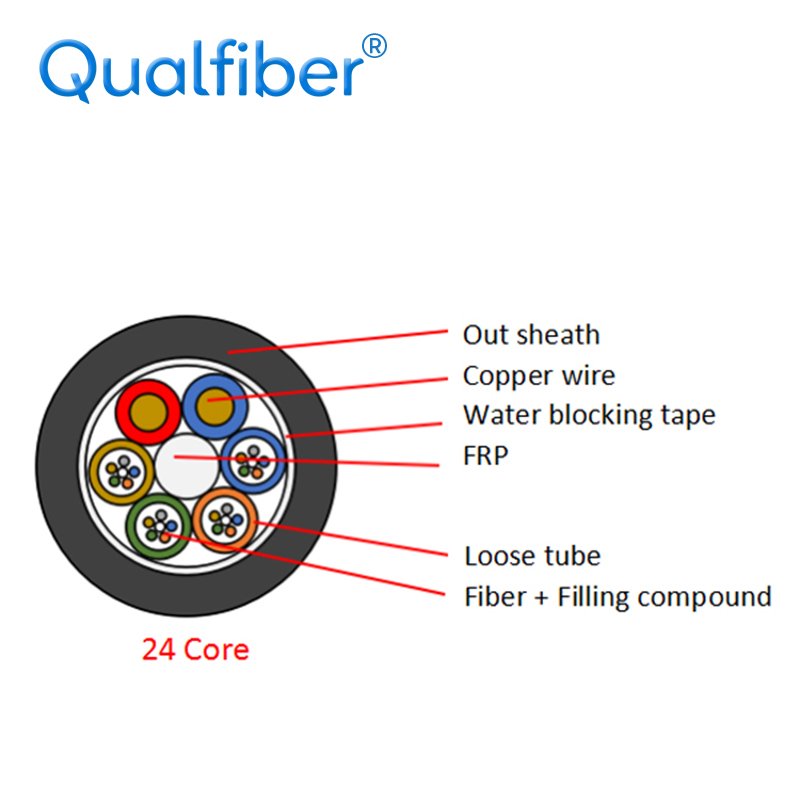

Structure details
| SM fiber | G652D | ||||||
| Fiber type | G652D | Concentricity error | ≤1um | ||||
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% | ||||
| Cladding diameter | 125±2um | Fiber color | standard spectrum | ||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) | ||||
| 6 (72F) | 12 (72F) | ||||||
| Copper wire | Qty | 0.6mm2*2 | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blocking system | Material | Water blocking tape | |||||
| Out sheath | Material | PE | Color | Black | |||
| Diameter | 9.2±0.2mm (24F) | Thickness | 1.6±0.1mm | ||||
| 10.8±0.2mm (72F) | |||||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
| No. | 1 | 2 | 3 | 4 |
| Color |  |
 |
 |
 |
Mechanical and environment performance
| Tensile strength | Long term（N） | 600N | |||||
| Short term（N） | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating Temperature | -20℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.24dB/km | ||||||
Package
Packing material: Wooden drum.
Packing length: 2km per drum.
