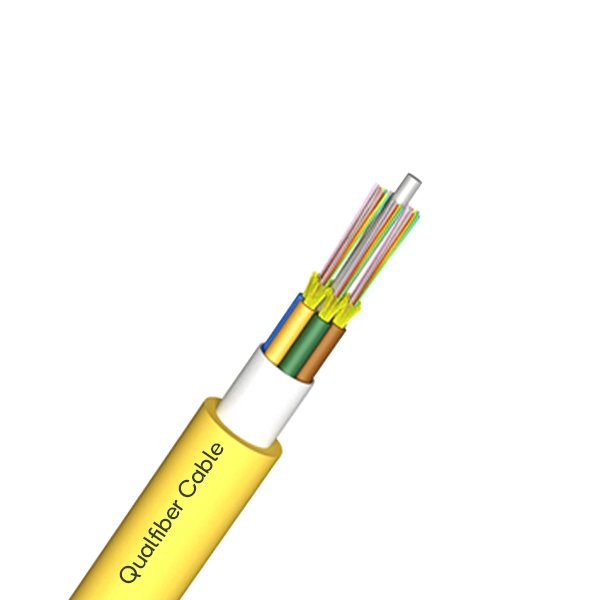

All-purpose Breakout indoor cable (GJFPV 12-144F) Featured Image

》

《

All-purpose Breakout indoor cable (GJFPV 12-144F)

Multi Purpose Breakout cable uses simple cable (900μm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.

Color:

Send email to us Add To Cart

Product Detail

Description

Cable construction

Number of fiber	12-144cores
Moisture Barrier	Water blocking system
Fiber type	OS1 OS2,G657A,G657B,OM1,OM2, OM3,OM4
Central strength member		Material	FPR +PE
		Diameter of FRP	2.0mm
		Diameter of FRP with PE	16mm
Break out cable		Inner sheath material	PVC/LSZH/OFNP
		Inner sheath thickness	0.7mm
		Inner cable diameter	5.5mm~5.8mm
		Strength member	Kevlar yarn
		Color of inner sheat	yellow
		No. of Ф0.9 tight buffer per inner cable	12
Outer sheath		material	PVC/LSZH/PE/OFNP
		Thickness	1.8±0.2mm

Loose tube color can be all single color customized(yellow) or the list below

qualfiber tube color

Fibers’ outside tight buffer color

Qualfiber Optical Cable Tight_Buffer group 2

Cable Mechanical characteristic

Items		Cable diameter	Weight
144 cores		28±2mm	597±10kg/km
Installation Temperature range（℃）		-15+60
Operation and transport temperature（℃）		-40+70
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	500
Min allowable Tensile Strength(N)	Short term	1500
Crush Load (N/100mm)	Long term	600
Crush Load (N/100mm)	short term	1500

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	—-	—-
Dispersion	1550nm	Ps/(nm*km)	—-	≤18	—-	—-	Dispersion
Dispersion	1625nm	Ps/(nm*km)	—-	≤22	—-	—-
Bandwith	850nm	MHZ.KM	—-	—-	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	—-	—-	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	—-	—-	≧ 1295, ≤1320
Zero dispersion slope		nm	≤0.092	≤0.091	—-	—-	—-
PMD Maximum Individual Fiber			≤0.2	≤0.2	—-	—-	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	—-	—-	—-
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	—-	—-	—-
Cable cutoff wavelength λcc		nm	≤1260	≤1260	—-	—-	—-
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	—-	—-	—-
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	—-	—-	—-
Numerical Aperture(NA)			—-	—-	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core diameter		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non-circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	—-	—-	—-

Package

1.Packing material: Wooden drum
2.Packing length: The standard length of the cable shall be 2 km. Other cable length packaging is also available
if required by the customer
