Best quality Epon Bridge - XGSPON XGPON OLT 8 Ports – Qualfiber Detail:
1.Product overview
8PORT XGSPON OLT is a highly integrated, large-capacity XG(S)-PON OLT for operators, ISPs, enterprises, and campus applications. The product follows the ITU-T G.987/G.988 technical standard, and can be compatible with three modes of G/XG/XGS at the same time. The product has good openness, strong compatibility, high reliability and complete software functions。 It can be widely used in operators’ FTTH access, VPN, government and enterprise park access, campus network access, ETC.
8PORT XGSPON OLT is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.
2.Main Feature
l Rich Layer 2/3 switching features and Flexible management methods
l Support multiple link redundancy protocols such as Flex-Link/STP/RSTP/MSTP/ERPS/LACP
l Support RIP、OSPF、BGP、ISIS and IPV6
l Safe DDOS and virus attack protection
l PON port can support GPON/XGPON/XGSPON three modes
l Support Power redundancy backup, Modular power supply, Modular fans supply
l Support power failure alarm
3. Hardware Features
|
Attributes |
8PORT XGSPON OLT |
| Exchange capacity | 104Gbps |
| Packet forwarding rate | 77.376Mpps |
| Memory and storage | memory：7168M; storage：2048M |
| Management port | Console |
| Port | 8*XG(S)-PON/GPON port, 8*10GE/GE SFP + 2*100G QSFP28 |
| weight | 6.5kg |
| fan | Fixed fans（three fans） |
| power | AC： 100～240V 47/63Hz；DC： 36V～75V； |
| Power consumption | MAX：90W |
| environment friendly | China ROHS EEE |
| Dimensions(Width * height * depth) | 440*270*44mm |
| Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ |
| environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) |
4. Software Features
|
Attributes |
8PORT XGSPON OLT |
| PON | Comply with ITU-T G.987/G.988 standard40KM Physical differential distance,100KM transmission logical distance1:256 Max splitting ratio
Standard OMCI management function Open to any brand of ONT ONU batch software upgrade |
| VLAN | Support 4K VLANSupport VlAN based on port, MAC and protocolSupport dual Tag VLAN, port-based static QINQ and fiexible QINQ |
| MAC | 128K Mac addressSupport static MAC address settingSupport black hole MAC address filtering
Support port MAC address limit |
| ring network protocol | Support STP/RSTP/MSTPSupport ERPS Ethernet ring network protection protocolSupport Loopback-detection port loopback detection |
| port control | Support two-way bandwidth controlSupport port storm suppressionSupport 9K Jumbo ultra-long frame forwarding |
| Port aggregation | Support static link aggregationSupport dynamic LACPEach aggregation group supports a maximum of 8 ports |
| Mirroring | Support port mirroringSupport stream mirroring |
| ACL | Support standard and extended ACLSupport ACL policy based on time periodProvide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
| QoS | Support flow rate limiting function based on custom business flowSupports mirroring and redirection functions based on custom business flowsSupport priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function,
support queue scheduling algorithms such as SP/WRR/SP+WRR |
| Safety | Support user hierarchical management and password protectionSupport IEEE 802.1X authenticationSupport Radius&TACACS+ authentication
Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection |
| Layer 3 | Support ARP learning and agingSupport static routeSupport dynamic route RIP/OSPF/BGP/ISIS
Support VRRP |
| System management |
CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
5.Purchasing Information
| Product name |
Product description |
|
8PORT XGSPON OLT |
8*XG(S)-PON/GPON port, 8*10GE/GE SFP + 2*100G QSFP28, Dual power with optional |

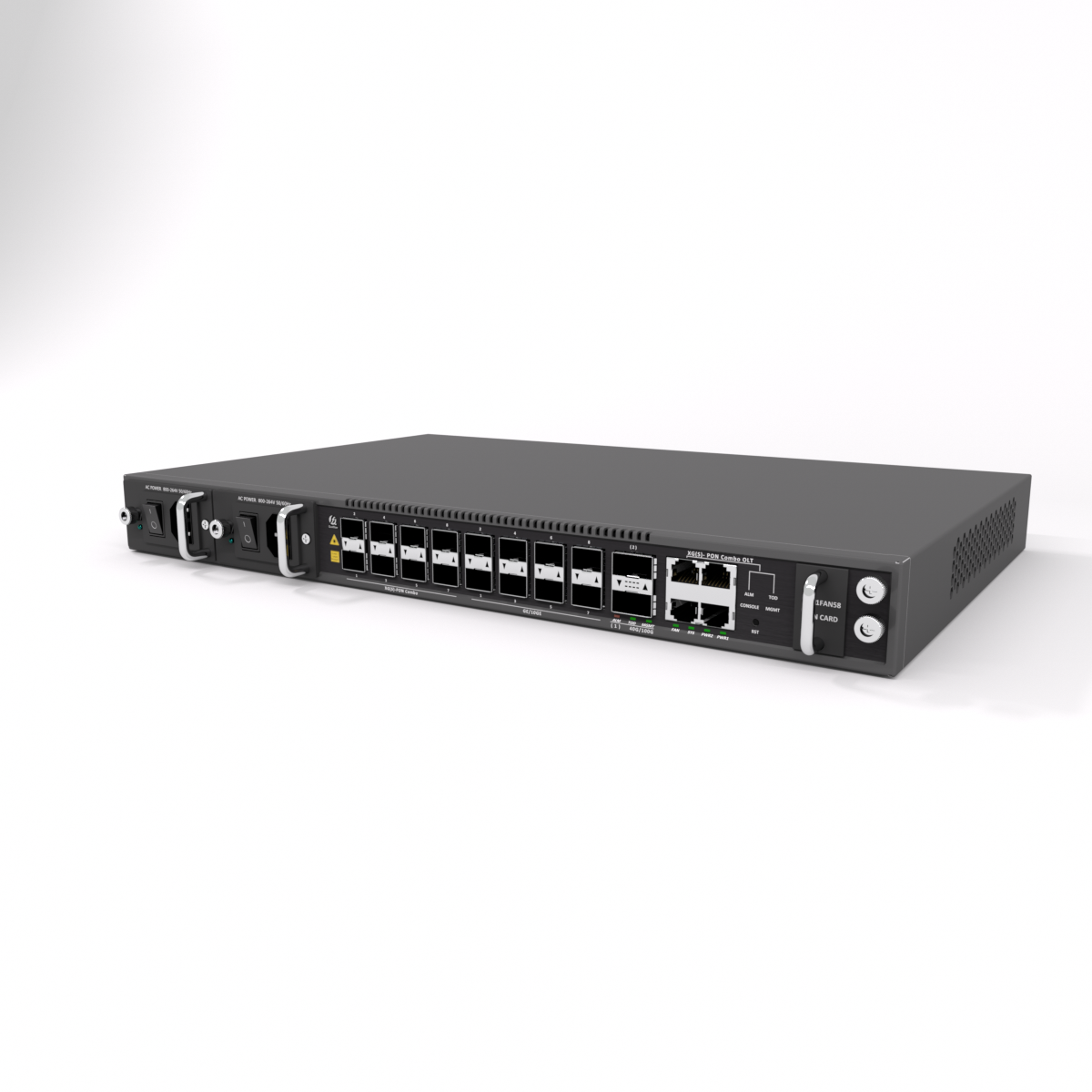

Product detail pictures:
