Color:
Europe style for What Is Gpon Ont - 5G CPE Indoor QIC X21 – Qualfiber Detail:

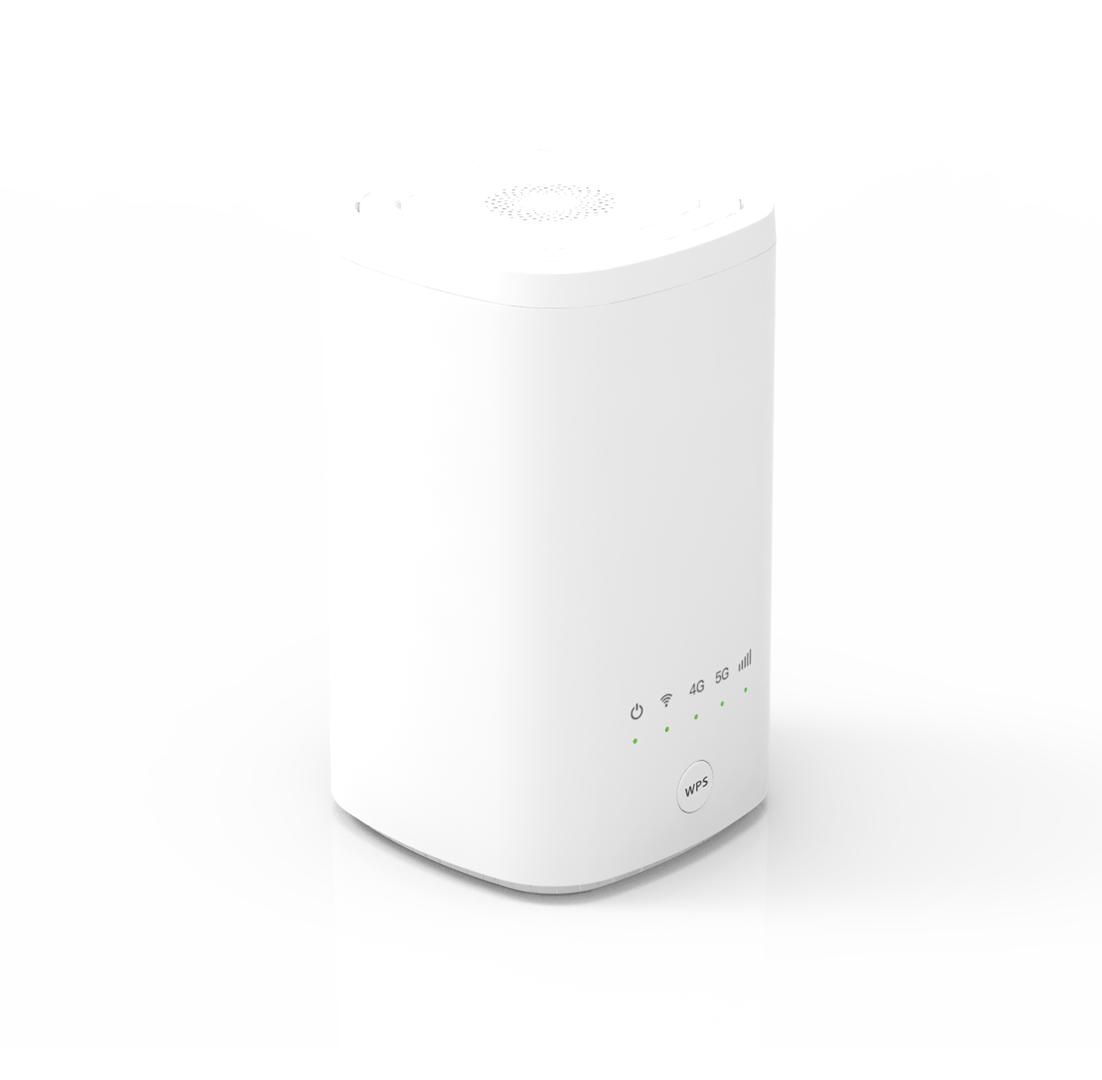

5G CPE Indoor QIC X21
Technology
• 3GPP Release 15
• 5G NR: N41/ N77/N78/N79
FDD: B1/B2/B3/ B5/B7/B8
TDD: B34/B39/B40/B41
• SA/NSA
• VoNR/VoLTE or VoIP
Chipsets
• UNISOC IVY510
• Realtek: 8198D+8192FU+8812FR
Dimensions&Weight
• 117mm*117mm*180mm
WLAN
• Build-in high gain Wi-Fi antennas
• Wi-Fi 2.4 GHz MIMO 2*2 802.11 b/g/n
• Wi-Fi 5.8 GHz MIMO 2*2 802.11 a/ac
• Multiple SSID/GuestWi-Fi Support
• Connect up to 32Wi-Fi Enabled Devices
• Wi-Fi Security (WPA/WPA2)
• Wi-Fi Protected Setup (WPS)
Standards /Approvals /Certifications
• FCC/CCC/CE
Datasheet
Environment
• Operating Temperature: 0°C to 45°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95%
• Storage humidity: 5% to 95%
SIM
• 2FF USIM Slot/ESIM
RF
• 6* Internal Omnidirectional antennas
• 5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
• TDD/FDD LTE: Category 12 with
450Mbps( DL)
• TDD/FDD LTE: Category 13 with
150Mbps( UL)
Ports/Interface/LED
• LAN: 4 * GE, 1*RJ 11
• LED Indicatorsfor Power/Wi-Fi/4G/5G/Signal
• Buttonsfor Power, Reset and Wi-Fi/WPS
Software functions
• On-board VPN
• IPv6/IPv4 dualstack
• NAT Firewall
• Port Forwarding
• DMZ
• OTA Firmware Upgrade
• Carrier SIM Lock
Management
• English/Chinese/Multi-language WebGUI
• TR069 management

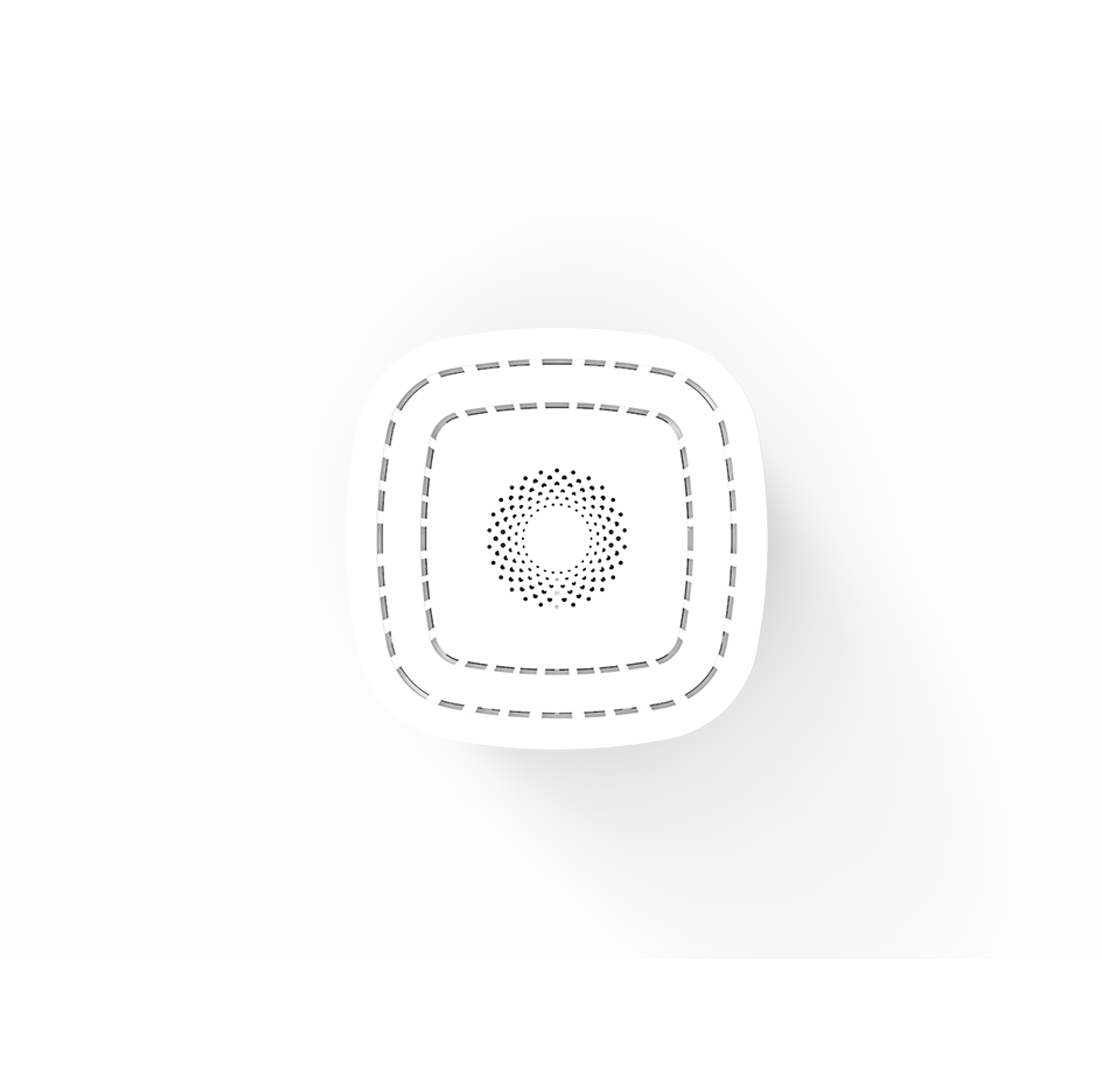

Product detail pictures:
