Mini câble de fibre optique de distribution de fibre nue Image vedette

》

《

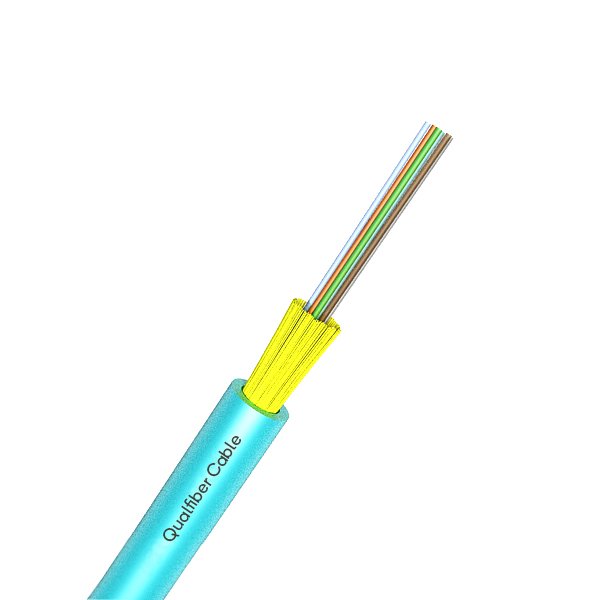

Câble optique de fibre de distribution de fibre nue mini

Basic Information

Place of Origin:	China
Brand Name:	Qualfiber/OEM
Model Number:	GJFJV

Minimum Order Quantity:	5 Kilometer/Kilometers
Price:	$2.00 – $300.00 / Kilometers
Packaging Details:	Wooden drum
Supply Ability:	5000 Kilometer/Kilometers per Week

Color:

Envoyez-nous un e-mail Ajouter au chariot

Les détails du produit

No. Of Fibers:	24-144	Number Of Conductors:	>= 10
Fiber Type:	SM:G652D MM:50/125 & 62.5/125	Temperature:	-20 To 60°C
Out Sheath:	LSZH/ PVC/ OFNR Jacket	Min Bending Radius(mm):	Long Term:10D ; Short Term: 20D
Model Number:	GJFJV	Application:	Indoor
Tensile Strength(N):	Long Term:1000; Short Term: 2000	Crush-load Max(N/100mm):	Long Term:1000; Short Term: 2000
Color:	Green Blue	Port:	Shenzhen
High Light:	direct burial fiber optic cable dielectric fiber optic cable

Câble optique de fibre de distribution de fibre nue mini

Break-out indoor cable use simplex cables subunit. A fiber-reinforced plastic(FRP) locates in the center of the core as a non-metallic strength member. The subunits are stranded around the core. The cable is completed with a PVC or LSZH ( Low smoke, Zero halogen, Flame-retardant ) jacket.

Câble Caractéristique mécanique

Articles		Cable diameter	Poids
24 cores		10	54.00kg / km
48 cores		10	78.00kg / km
72 cores		11,5	90.00kg / km
96 cores		12,5	115.00kg / km
144 cores		14,5	135.00kg / km
Storage temperature(℃)		-20 + 60
Min Bending Radius(mm)	Long terme	10D
Min Bending minimum (mm)	Court terme	20D
Min allowable Tensile Strength(N)	Long terme	1000
Min allowable Tensile Strength(N)	Court terme	2000
Crush Load (N/100mm)	Long terme	1000
Crush Load (N/100mm)	short term	2000

Couleur tampon serrée

Qualfiber Optical Cable Tight_Buffer group 2

Caractéristique de fibre

Style de fibre		Unité	SM G652	SM G652D	MM 50/125	MM 62,5 / 125	MM OM3-300
état		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
atténuation		dB / km	≤	≤	≤	≤3,0 / 1,0	≤3,0 / 1,0
atténuation		dB / km	0,36 / 0,23	0,34 / 0,22	3.0 / 1.0	—-	—-
Dispersion	1550nm	Ps / (nm * km)	—-	≤18	—-	—-	Dispersion
Dispersion	1625 nm	Ps / (nm * km)	—-	≤22	—-	—-
Bande passante	850nm	MHZ.KM	—-	—-	≥400	≥160	Bande passante
Bande passante	1300nm	MHZ.KM	—-	—-	≥800	≥500
Zero dispersion wavelength		nm	1300-1324	≥1302, ≤1322	—-	—-	≥ 1295, ≤1320
Zero dispersion slope		nm	≤0,092	≤0,091	—-	—-	—-
PMD Maximum Individual Fiber		≤0,2	≤0,2	—-	—-	≤0,11
PMD Design Link Value		Ps (nm2 * k m)	≤0,12	≤0,08	—-	—-	—-
Fibre cutoff wavelength λc		nm	≥ 1180, ≤1330	≥1180, ≤1330	—-	—-	—-
Cable shutoff wavelength λcc		nm	≤1260	≤1260	—-	—-	—-
MFD	1310nm	euh	9,2 +/- 0,4	9,2 +/- 0,4	—-	—-	—-
MFD	1550nm	euh	10,4 +/- 0,8	10,4 +/- 0,8	—-	—-	—-
Numérique (NA)		—-	—-	0,200 + / -0,015	0,275 +/- 0. 015	0,200 +/- 0 .015
Step(mean of bidirectional )		dB	≤0,05	≤0,05	≤0,10	≤0,10	≤0,10
Irregularities over fiber length and point		dB	≤0,05	≤0,05	≤0,10	≤0,10	≤0,10
