Hot Selling for Router Repeater - XPON(GPON and EPON) 1GE 1FE LAN with POTS for Telephone QF-LX101WP – Qualfiber Detail:
Main Characters
n ITU-T G.984.x GPON standard
n IEEE 802.3ah GEPON standard
n Offers 1*SC/APC or SC/UPC GPON WAN port
n Support 1.25G upstream and 2.5G downstream
n Offers1*SC/APC or SC/UPC GEPON WAN port,
n Support 1.25G upstream and1.25G downstream
n Offers 1GE + 1FE LAN ports can be configured in both Route or Bridge modes
n Offers 1*FXS port for high quality Voice over IP deploy
n Offers 300Mbps Wi-Fi Router features
n Max 1:128 Fiber ratio for GPON, max transmission distance can reach 20km
n Max 1:64 Fiber ratio for GEPON, max transmission distance can reach 20km
n Multiple WAN connections, offers different services on different LAN ports
n Support AES 128-bit encrypted and key switching, enhancing transmission security
n Support 8 Tconts and 32 GEM port IDs, enabling multiple services on a single subscriber CPE
n Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
n Support Rich layer 2 Management features, applicable to the biggest ISP networks
n Support FBA (Flexible Bandwidth Assignation), dynamic assign bandwidth automatically
n Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage
n High security, data encrypted at upstream and downstream directions
n Support L2 Switching features, such as IEEE802.1Q VLAN, 802.1P QoS, etc.
n Support OMCI and TR069 Management, manage subscribers remotely
n Supports IPv4 and IPv6, highly applicable in both IP type based networks
VIDEO
GPON Parameters
ITU-T G.984.x GPON, built-in with a -30dBm BOSA
SC/UPC or SC/APC connector
1310nm upstream & 1490nm downstream
Support G.984.1 General Characteristics
Support G.984.2 Physical Media Dependent (PMD) layer Specification Support G.984.3 Transmission convergence layer Specification Support G.988 OMCI protocol
GPON transceiver transmitting power: 0.5-5dBm
Optical receiving sensitivity: -30dBm
Transmission wavelength: Upstream: 1310nm / Downstream: 1490nm Support 1:128 Fiber Ratio at 20km transmission distance.
Fiber Transmission cable: G.652 Single mode optical fiber cable Configurable AES decryption on downstream payload.
Configurable FEC on both upstream and downstream payloads. Multi-Application Processor queues for dedicated connections for in-band.
Enhanced GPON debug and diagnostic functions.
Support up to 8 Transmission Container (T-Cons), 32 GEM port IDs Support NSR/SR Dynamic Bandwidth Allocation (DBA)
Support Forward Error Correction (FEC) Maximum 2.5 Gbps Downlink/1.25 Gbps Uplink Support Dying Gasp
QoS
IEEE802.1P QoS, DSCP, TOS:
SP, WRR, SP+WRR dispatching Algorithm Source & DST-MAC based QoS
VLAN ID, VLAN Priority based QoS Source DST-IP based QoS
Home Gateway/CPE Features
Multi-WAN, support up to 8 WAN connections Support Route and/or Bridged WAN
Port Binding, Data/VoIP/IPTV services can be bound to different LAN ports
Configurable VLAN ID for each WAN Configurable QoS queues for each WAN Multi-services bound to the same WAN
Networking Features
MAC Learning, 1K MAC address table Bridged or Route network mode Support RIP v1, v2 for routing
Static Route, Dynamic Route, DNS Proxy,
IPv4 & IPv6 TCP, UDP, RTP, SNTP, NAT, DHCP, DNS
IEEE802.1Q VLAN, port VLAN
IEEE802.1x, MAC, IP, or TCP/UDP based ACLs
port Bandwidth Control, IEEE802.3x flow control Storm Control: Broadcast/Multicast/unknown unicast, ARP
Port Isolation, port Mirror, Auto MDI/MDIX IEEE802.1d STP, Port Loop detection
IGMP v2, v3 & IGMP Snooping for IPv4 MLD v2, v3 & MLD Snooping for IPv6
GEPON Parameters
IEEE 802.3ah GEPON standard, support standard OAM CTC 2.1, 3.0 China Telecom GEPON standard
Built-in with a BOSA, SC/UPC or SC/APC connector
1310nm wavelength at upstream & 1490nm wavelength at downstream GEPON transceiver transmitting power: 0.5-5dBm,
Optical receiving sensitivity:-28dBm
1:64 Fiber Ratio at 20km transmission distance.
Fiber Transmission cable: G.652 Single mode optical fiber cable Support 1 LLID (Logical Link Identifier)
Support 1 LOID (Logical ONU Identifier) Support Triple Churning Encryption algorithm
Support NSR/SR Dynamic Bandwidth Allocation (DBA) Support Forward Error Correction (FEC)
4 QoS queues & SP Dispatching Algorithm over PON Maximum 1.25Gbps Downlink / 1.25Gbps Uplink Support Dying Gasp
300Mbps Wi-Fi Router Features
Offers an IEEE802.11n Wi-Fi Router
2.4GHz frequency 2 LAN ports, 1GE and 1FE port
MIMO, support 2-IN-2-OUT, Max 300Mbps Wi-Fi throughput
Wi-Fi Transmission Distance: 150m for indoors, 300m for outdoors WPS one-key protection over your Wi-Fi network
Support DHCP, Static IP and PPPoE
DHCP Server, DHCP Relay, DHCP Client, Static IP assignation Static Routing from source IP to destination IP
Firewall, NAT, NAPT, UPnP
DDNS, DMZ Host, port Forwarding
64/128 bit WEP, IEEE802.1x, WPA and WPA2 authentications Max 4 SSID broadcasting, Hidden SSID
Automatically choose the best signal channel
STA mutual isolation and ACL table based on MAC Accesses Wi-Fi Multimedia (WMM), enhanced QoS for multimedia packets
Management Features
Serial interface maintenance using UART Web UI Management
OMCI & NMS Management
CLI command line management FTP/TFTP/HTTP Auto Provision Management TR069 ACS management
Hardware parameters
Built on a powerful GPON/GEPON SoC, 950MHz
CPU covered with cooling unit. Support Hardware NAT.
come with a 512Mb 16-bit DDR3 SDRAM,
come with a 1Gb Nand Flash
1*GPON/GEPON SC /APC or SC/UPC port, 2.5G/1.25G downstream, 1.25G Upstream
1GE + 1FE ports
300Mbps Wi-Fi router,
2*5dBi external antennas
1 *FXS port, support analog phones.
IEEE802.3x flow control Full duplex and half duplex, LED Lights: Power, PON, LOS, INTERNET, VoIP, GE, FE, Wi-Fi, WPS
External power supply, DC 12V, 0.5A-1A
4KV Surge protection
Desktop and wall mount design, plastic housing
VoIP Parameters
Offers 1* FXS port for Phone connections
SIP V1, V2 (RFC3261, RFC3262, RFC3264, RFC3265)
SIP & H.248, support registering 2 SIP accounts G.711, G.723.1, G.729A-8kbps, G.726, G.722, ILBC
voice codes
DTMF Tone Detection, DTMF Tone Relay, Multiple Calling Tone, FSK Caller ID Calling line Identification Presentation Calling line Identification Restriction
Call forwarding, call transfer, call hold, three-way conference, etc.
QoS and TOS to ensure voice packets pass through in priority
Support RFC62 Echo protocol, Support Digital Map configuration

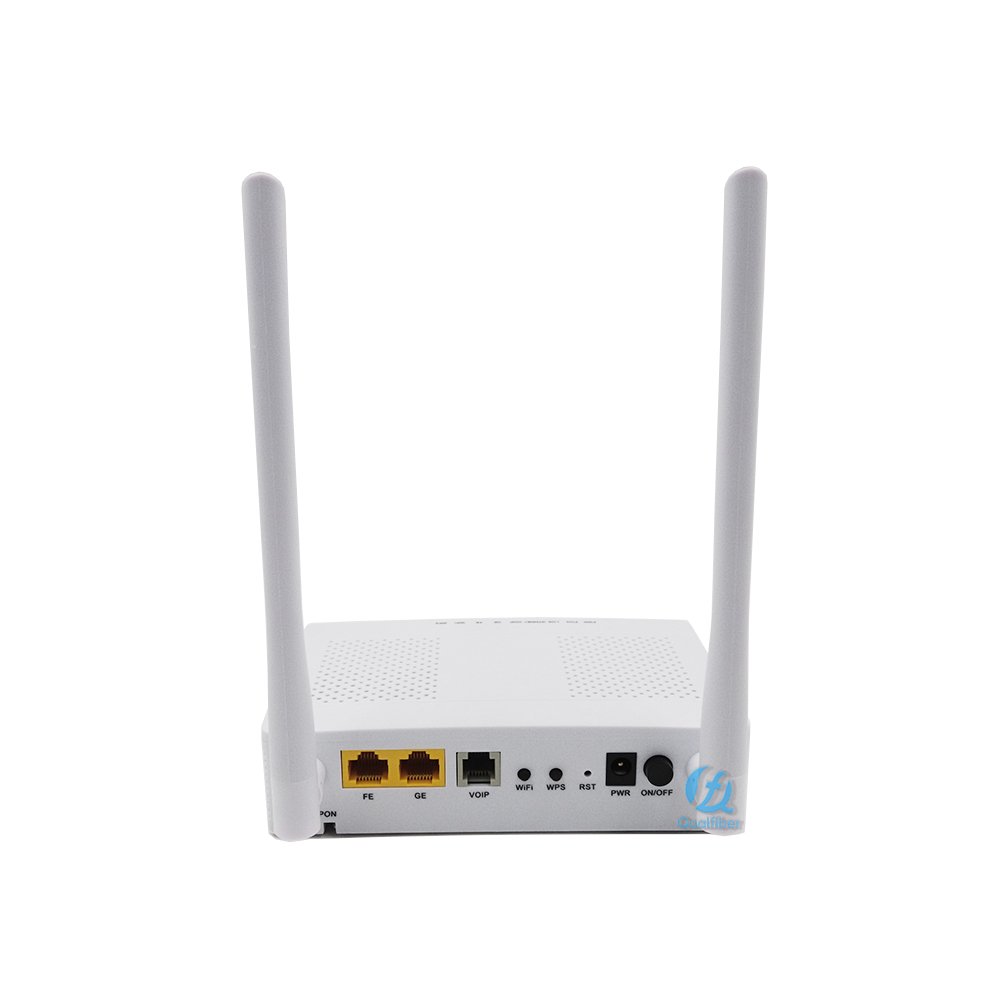

Hardware Interface
1*GPON SC/APC or SC/UPC port | 2*5dBi directional external antennas |
1*10/100/1000Base-Tx GE port | 1*Reset button |
1*10/100Base-Tx Fast Ethernet port | 1*PWR On/Off Switch button |
1*FXS VoIP port | 1*Wi-Fi on/off button |
1*Power Supply Jack | 1*WPS button |
9 LEDs Indicators | Power, PON, LOS, Internet, VoIP, GE, FE, Wi-Fi, WPS |
Specification Table
Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3ah, IEEE 802.3x, IEEE802.1Q, IEEE802.1P,
IEEE802.1D, IEEE802.11b/g/n, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G984.4
|
||
Topology | Star Topology | ||
Uplink port | 1 GPON/GEPON Uplink port, SC/UPC or SC/APC Connector | ||
G/EPON Transmission Distance |
Up to 20km | ||
Downlink port
|
1*10/100/1000Base-Tx Gigabit LAN
1* 10/100Base-Tx Fast Ethernet port |
||
VoIP port | 1 *FXS port | ||
Wi-Fi | IEEE802.11b/g/n 300Mbps Wi-Fi Router | ||
LED Indicators | Power, PON, LOS, INTERNET, VoIP, GE, FE, Wi-Fi, WPS | ||
Ethernet Cable |
10Base-Tx: UTP category 3, 4,5, up to 100m 100Base-Tx: UTP category 5, up to 100m
1000Base-Tx: UTP category 5, 5E, 6, up to 100m |
||
Fiber Cable | 8.3μm, 8.7μm, 9μm and 10μm single mode fiber cable | ||
Power Supply | AC 100-240V, DC 12V, 0.5A- 1A, External Power Supply, 4KV Surge Protection | ||
Temperature Humidity |
Temperature | Humidity | |
Working | 0℃ – 45℃ | 10% – 90% | |
Standby | -40℃ – 70℃ | 5% – 90% RH |
