Manufacturer for 5g Cpe Idu - 1Ge 1Fe LAN xPON ONU WiFi CATV RF with POTS Tel RJ11 – Qualfiber Detail:
Overview
1G1F+WIFI
l 1G1F+WIFI+CATV+POTS is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier- class FTTH application provides data service access.
l 1G1F+WIFI+CATV+POTS is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F+WIFI+CATV+POTS adopts high reliability, easy management, configuration flexibility and good
quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F+WIFI+CATV+POTS is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up
to 300Mbps.
l 1G1F+WIFI+CATV+POTS is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1G1F+WIFI+CATV+POTS is designed by Realtek chipset 9602C.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports SFU and HGU of EPON CTC 3.0 standard
l Supports GPON G.984/G.988 standards and IEEE802.3ah.
l Support CATV interface for Video Service and remote control by Major OLT
l Support SIP Proctol for Voip Service
l Integrated line testing compliant with GR-909 on POTS
l Support 802.11n WIFI (2×2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
l Compatible with popular OLT(HW, ZTE, FiberHome…)
Specification
| Technical Item | Details |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connectorReceiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBmTransmission distance: 20KM |
| LAN interface | 1×10/100/1000Mbps and 1×10/100Mbps auto adaptive Ethernetinterfaces. Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/nOperating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBiSupport: Multiple SSID Channel:13Modulation type: DSSS、CCK and OFDMEncoding scheme: BPSK、QPSK、16QAM and 64QAM |
| CATV Interface | RF, optical power : +2~-18dBmOptical reflection loss: ≥45dBOptical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input）AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 9 LED, For Status of WIFI 、WPS、PWR、LOS、PON、LAN1~LAN2、WORN、 |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition | Temperature : 0℃～+50℃Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
Panel lights and Introduction
| Pilot Lamp | Status | Description |
| WIFI | On | The WIFI interface is up. |
| Blink | The WIFI interface is sending or/and receiving data (ACT). | |
| Off | The WIFI interface is down. | |
| WPS | Blink | The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| Worn(CATV) | On | Input optical power is higher than 3dbm or lower than -15dbm |
| Off | Input optical power is between -15dbm and 3dbm | |
| Normal (CATV) | On | Input optical power is between -15dbm and 3dbm |
| Off | Input optical power is higher than 3dbm or lower than -15dbm |
| FXS | On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. |
Application
l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
l Typical Service：Broadband Internet access, IPV, VOD, video surveillance, etc.
Ordering information
| Product Name |
Product Model |
Descriptions |
| 1G1F+WIFI+CATV XPON | PN: QF-CX101WCP
Series:CX1112R002 |
10/100/1000Mbps auto adaptive Ethernet（RJ45）,1SC/APC Connector, Plastic Casing, External power supply adapter |
| 1G1F+WIFI+CATV EPON | PN: QF-CE101WCP
Series:CE1112R002 |
10/100/1000Mbps auto adaptive Ethernet（RJ45）,1SC/APC Connector, Plastic Casing, External power supply adapter |

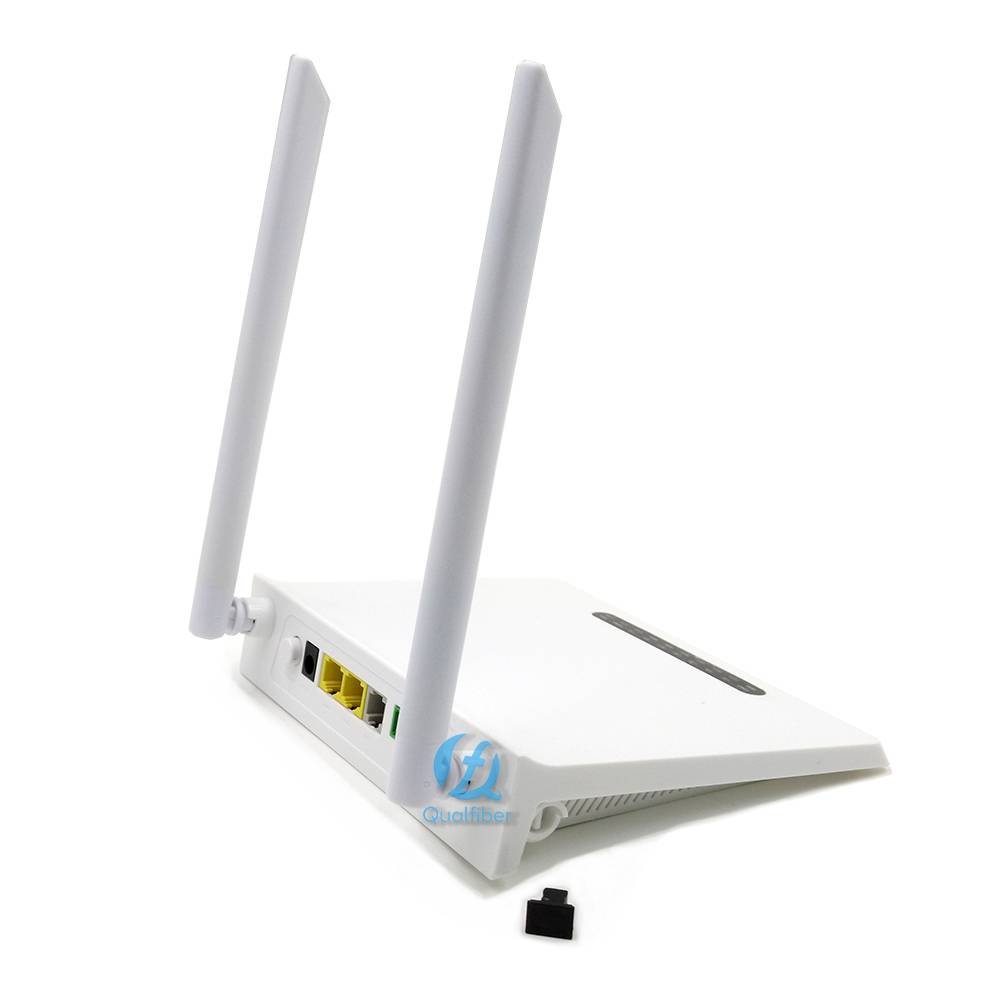

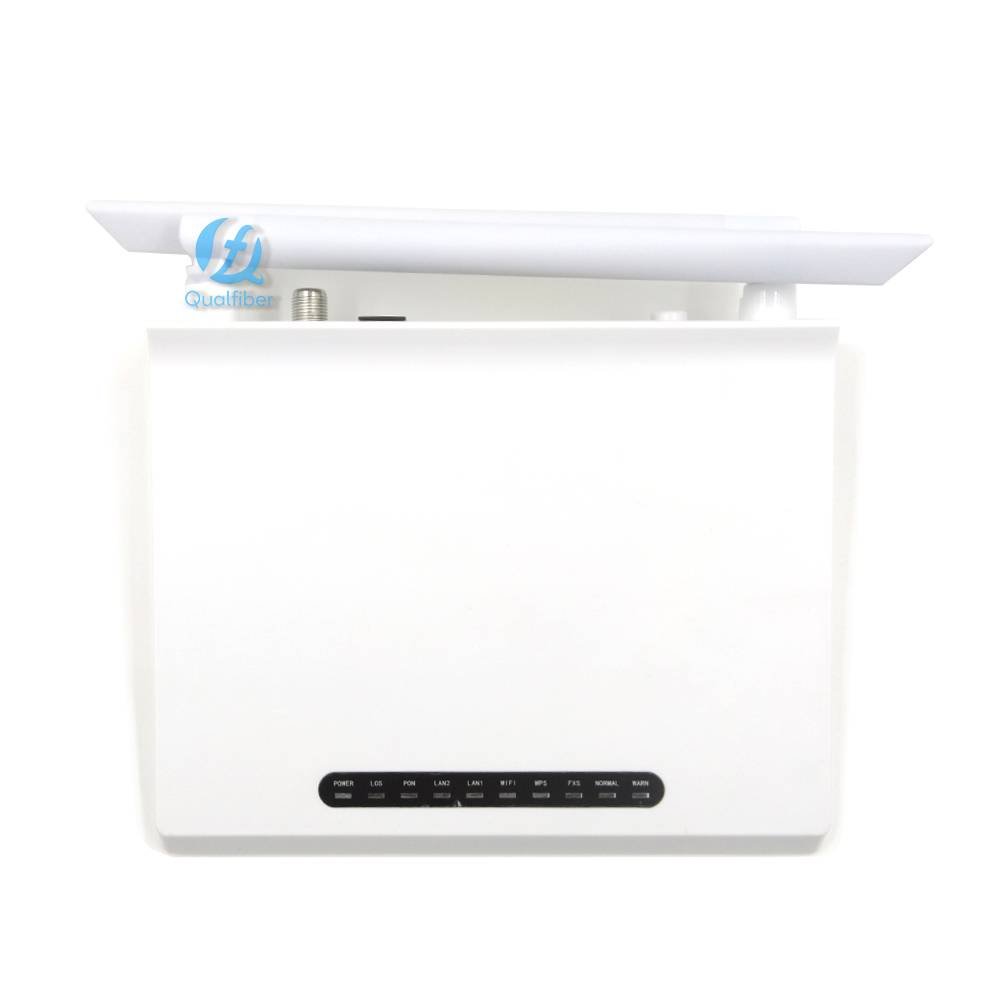

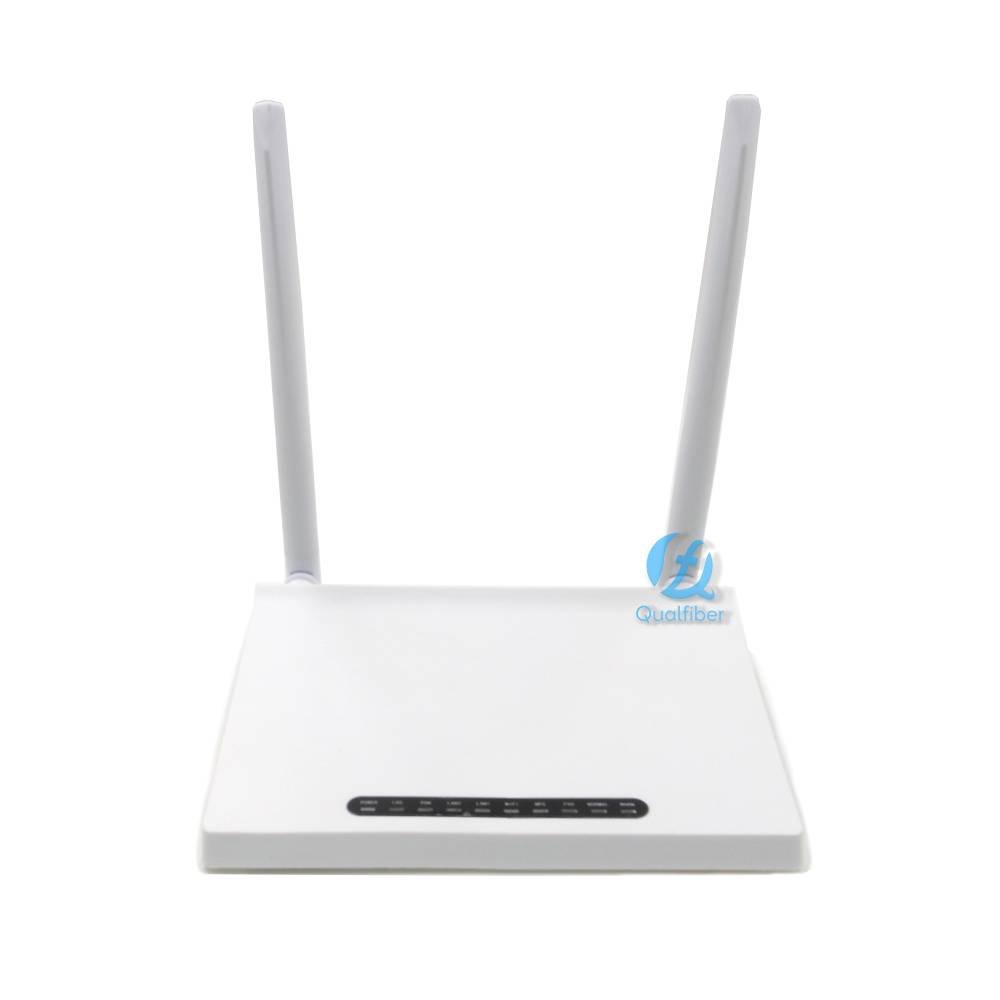

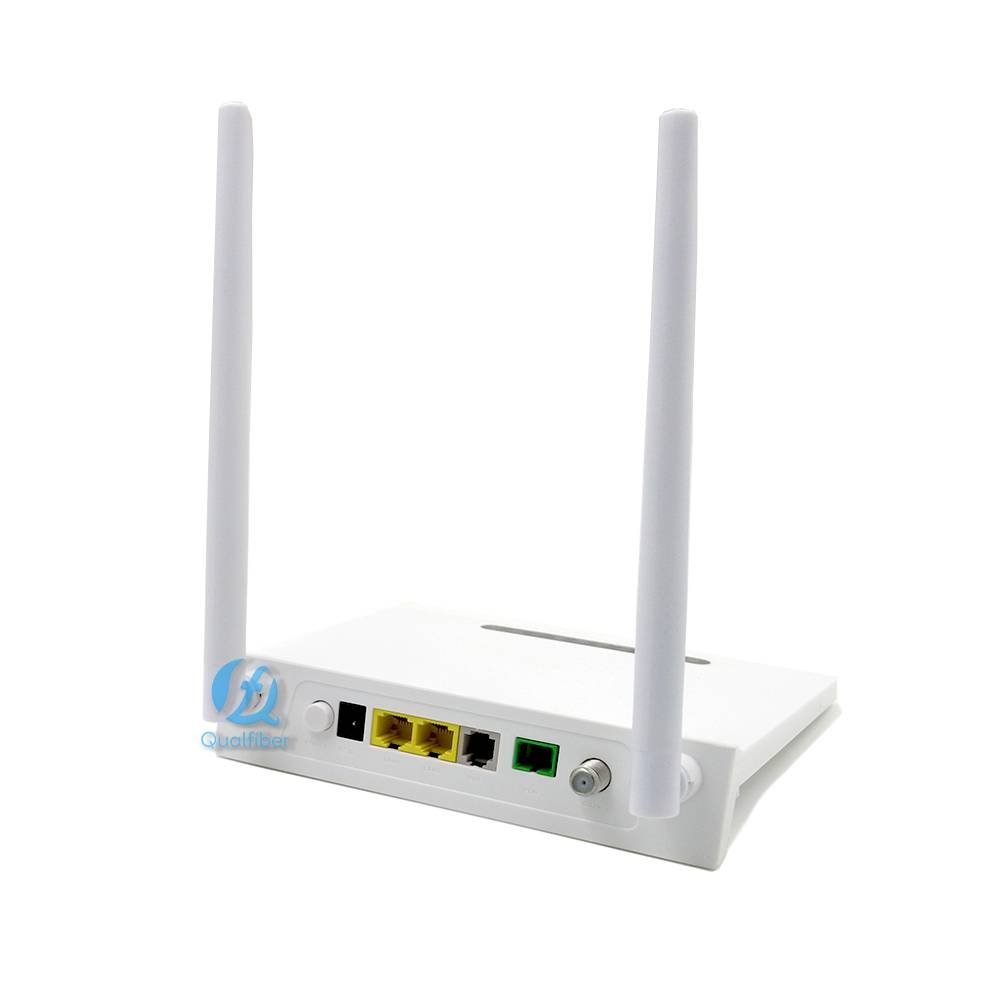

Product detail pictures:
