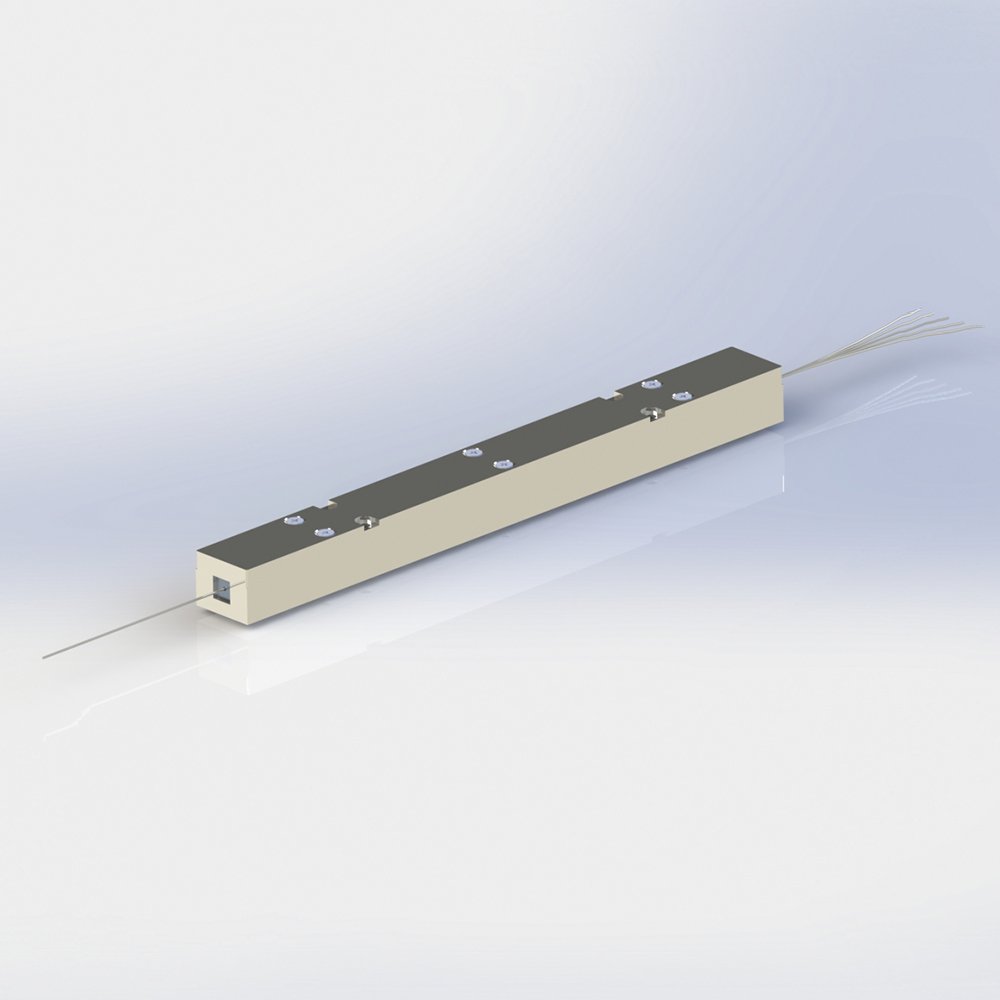

N×1 High Power Pump Combiners
1.0 Description
The N×1 Multimode Pump Combiners (MPC) is designed for combining pump laser into the main fiber. The MPC can be applied into the high power fiber laser and fiber amplifier.
2.0 Optical and Operation Specifications
| Item | Specifications | Min. | Typ. | Max. | Unit | Notes |
| 2.01 | Pump wavelength | 800 | 1000 | nm | ||
| 2.02 | Polarization | Random | PM Customizable | |||
| 2.03 | Operation regime | CW | ||||
| 2.04 | Fiber length | 1.0 | m | Default | ||
| 2.05 | Operating temperature range | 0 | +70 | °C | ||
| 2.06 | Storage temperature | -40 | +85 | °C | ||
| 2.07 | Cooling method | Bottom conduction cooling | ||||
3.0 Typical fiber combinations
| Item | Confi. | Pump Fiber Type | Output Fiber Type | Pump Efficiency | PowerHandling | Package |
| 3.01 | 3×1 | 105/125, 0.22NA106.5/125, 0.22NA | 220/242 MMF, 0.22NA225/240 MMF, 0.22NA | 97% | 200W/leg | A –100*15*11 |
| 135/155, 0.22NA | 220/242 MMF, 0.22NA225/240 MMF, 0.22NA | 95% | 200W/leg | A –100*15*11 | ||
| 3.02 | 4×1 | 105/125, 0.22NA106.5/125, 0.22NA | 220/242 MMF, 0.22NA225/240 MMF, 0.22NA | 96% | 200W/leg | A –100*15*11 |
| 3.03 | 7×1 | 105/125, 0.22NA106.5/125, 0.22NA | 220/242 MMF, 0.22NA225/240 MMF, 0.22NA | 95% | 200W/leg | A –100*15*11 |
| 3.04 | 105/125, 0.22NA106.5/125, 0.22NA | X/125 DCF, 0.075NAX/250 DCF, 0.06NAX/400 DCF, 0.06NA | 97% | 200W/leg | B –150*15*12 | |
| 3.05 | 200/220 MMF, 0.22NA220/242 MMF, 0.22NA225/240 MMF, 0.22NA | X/400 DCF, 0.06NA | 97% | 400W/leg | B –150*15*12 | |
| 3.06 | 19×1 | 105/125, 0.22NA106.5/125, 0.22NA135/155, 0.22NA | X/400 DCF, 0.06NA | 96% | 150W/leg | B –150*15*12 |
| * X=6, 8, 10, 15, 20, 25, 30 etc. | ||||||
| * Better performance and other configuration can all be customized. | ||||||

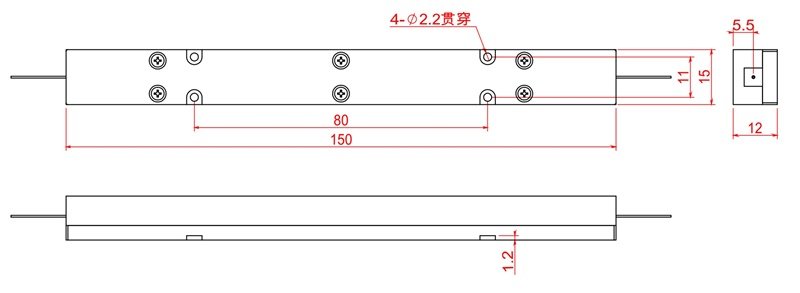

4.0 Mechanical specifications and drawings
| Item | Specifications | Unit | Notes | ||
| 4.01 | Module’s Dimensions | 100*15*11 | mm | Bottom conduction cooling | |
 |
|||||
| Item | Specifications | Notes | Notes | ||
| 4.02 | Module’s Dimensions | 150*15*12 | mm | Bottom conduction cooling | |
 |
|||||
5.0 Ordering information
| MPC-1-2-3-4-5/5-6 | ||
| 1:Port combination | 2: Pump fiber type | 3: Output fiber type |
| 3 – 3×1, 4 – 4×17 – 7×1, 19– 19×1 | M01 – 105/125, 0.22NAM02 – 106.5/125, 0.22NAM03 – 135/155, 0.22NA ect. | D00 – 10/130 DCF, 0.075NAM05 – 220/242 MMF, 0.22NAM06 – 225/240 MMF, 0.22NA ect. |
| 4:Pump power per port | 5/5: Pump/Output fiber length | 6: Package type |
| 100 – 100W,200 – 200W250 – 250W ect. | 1.0 – 1.0m Default1.5 – 1.5m2.0 – 2.0mect. | A – Aluminum package 100*15*11mmB – Aluminum package 150*15*12mm – Specify |
| For example: MPC-3-M02-M05-200-1.0/1.0-A | ||
