Realize the reservation, pass-through of the feeder optical cable and branch optical cable at the node, as well as the distribution and dispatch of the optical fiber.
Color:
Main performance: Realize the reservation, pass-through of the feeder optical cable and the branch optical cable at the node, and the distribution and dispatch of the optical fiber.
Laying method: indoor wall hanging.
Features:
FTTH products, passive optical splitter, dedicated wiring box for wiring.
The cover and bottom of the box body adopt “inner card” design, which is beautiful and simple, especially suitable for fiber to the home installation.

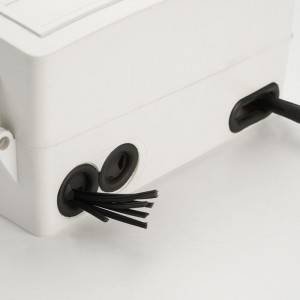

It satisfies the optical distribution and wiring of the Ф10-15 optical cable terminal, and satisfies the protective connection of the figure-8 or Φ3 sheath cable.

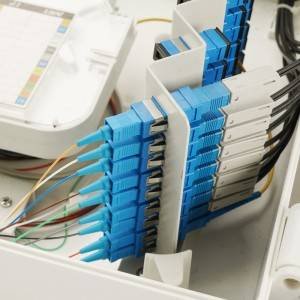

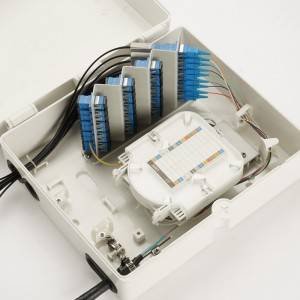

Four of 1:8 PLC mini optical splitters can be installed, and 36 SC adapters can be installed at the same time.
| Box Material | Polymer synthetic plastic | Appearance size (mm) | 280×250×125 |
| Fiber tray capacity | 36 Core | Weight(kg) | 2.3～2.5 |
| Type | Name | Packaging size (mm) |
Remark |
| QF-15N5S | 12F Fiber optic distribution box | 630×580×520 (12 pcs) |
|
| 24F Fiber optic distribution box | |||
| 36F Fiber optic distribution box | |||
| 16-Channel fiber optical distribution box | SC |
