Telecom Passive System

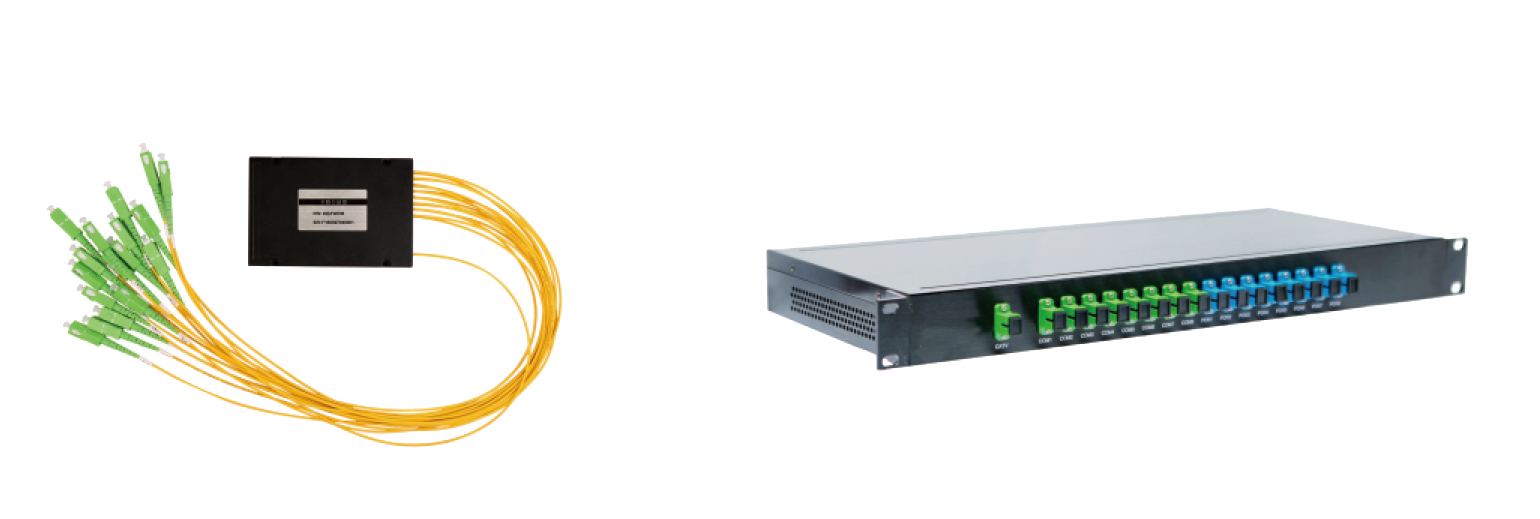

4/8/16 Channel CWDM Module

4-8-16 Channel CWDM Module

Features

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

Line monitoring
WDM network
Telecommunication
Cellular application
Fiber optical amplifier
Access network

4-8-16 Channel CWDM Module-2
Parameter

4 Channels

8 Channels

16 Channels

Mux

 Demux Mux

Demux

Mux

 Demux
Channel Wavelength (nm)

1270-1610 or 1271-1611
Channel Spacing (nm)

20
Channel Passband (@-0.5dB bandwidth) (nm)

±7.5/±6.5
Insertion Loss (dB)

<1.5

 <2.5

<3.5
Channel Ripple (dB)

<0.5
Isolation (dB) Adjacent N/A >30 N/A

>30

N/A

 >30
Non-adjacent N/A >40 N/A

>40

N/A

 >40
Insertion Loss Temperature Sensitivity (dB)

<0.5
Wavelength Temperature Shifting (nm/°C)

<0.002
Polarization Dependent Loss (dB)

<0.1
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>50
Return Loss (dB)

>45
Maximum Power Handling (mW)

300
Operating Temperature (°C)

-5~+75
Storage Temperature (°C)

-40~+85
Package Dimension (mm)

L100xW80xH10

 L120xW80xH18

19" 1U Rackmount

1X2 CWDM Device(3 Ports)

1x2 CWDM Device(3 Ports)











Features

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

Line monitoring
WDM network
Telecommunication
Cellular application
Fiber optical amplifier
Access network

1x2 CWDM Device(3 Ports)-1
Parameter

Specification
Operating Wavelength (nm) 1270-1610 or 1271-1611
Channel Spacing (nm)

20
Channel Passband (@-0.5dB bandwidth) (nm)

±7.5/±6.5
Pass Channel Insertion Loss (dB)

<0.6
Reflection Channel Insertion Loss (dB)

50.4
Channel Ripple (dB)

<0.5
Isolation (dB) Pass Channel

>30
Reflect Channel

>13
Insertion Loss Temperature Sensitivity (dB)

<0.5
Wavelength Temperature Shifting (nm/°C)

<0.002
Polarization Dependent Loss (dB)

<0.10
Polarization Mode Dispersion (ps)

<0.10
Directivity (dB)

>50
Return Loss (dB)

>45
Maximum Power Handling (mW)

300
Operating Temperature (°C)

-5~+75
Storage Temperature (°C)

-40-+85
Package Dimension (mm) For 250pm, 900pm

05.5 x L38
For 2.0mm. 3.0mm

90 x 20 x 10

4,8,18-Channel Mini CWDM Module

4,8,18-Channel Mini CWDM Module work shop

Features

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

Line monitoring
WDM network
Telecommunication
Cellular application
Fiber optical amplifier
Access network

4,8,18-Channel Mini CWDM Module
Parameter

Specification
Channel Number

4

8

 8+E1 8+E2

18
Channel Wavelength (nm)

1270-1610 or 1271-1611
Channel Spacing (nm)

20
Passband (nm) Channels

±6.5
Upgrade port 1310+/-50 1260-1458
Isolation (dB) Adjacent

>30
Non-adjacent

>40
Upgrade port

>15
Insertion Loss (dB) Channels

1.0

1.5

 1.5 1.5

3.0
Upgrade port 1.2 1.2
Fiber Type Corning SMF-28 with 900pm loose tube
Polarization Dependent Loss (dB)

<0.2
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>55
Return Loss (dB)

>50
Maximum Power Handling (mW)

500
Operating Temperature (C)

-10~+75
Storage Temperature (C)

-40~+85
Package Dimension (mm) 8+1CH: L44 x W28 x H6 8+1CH: L53.8 x W28 x H818CH : L50 x W50 x H6

100G, 200G DWDM Devices (4,8,16 Channels)

100G, 200G DWDM Module (4,8,16 Channels)

Features

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path





Applications

Channel add/drop
DWDM network
Wavelength routing
Fiber optical amplifier
CATV fiber optic system

100G, 200G DWDM Module (4,8,16 Channels)-3
Performance Specifications
Parameter

4 Channels

 8 Channels

16 Channels

Mux

 Demux

Mux

Demux

Mux

Demux
Channel Wavelength (nm)

ITU 100GHz Grid
Channel Spacing (GHz)

100/200
Channel Passband (@-0.5dB bandwidth) (nm)

>0.3(10OG)/>O.5(2OOG)
Insertion Loss (dB)

<1.8

<3.0

<4.5
Channel Ripple (dB)

<0.5
Isolation (dB) Adjacent

N/A

 >30

N/A

>30

 N/A

>30
Non-adjacent

N/A

 >40

N/A

>40

 N/A

>40
Insertion Loss Temperature Sensitivity (dB)

<0.5
Wavelength Temperature Shifting (nm/°C)

<0.002
Polarization Dependent Loss (dB)

<0.1

 <0.1

<0.15
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>50
Return Loss (dB)

>45
Vlaximum Power Handling (mW)

300
Operating Temperature (°C)

-5~+75
Storage Temperature (°C)

-40~+85
Package Dimension (mm)

L100xW80xH10

L120xW80xH18

19" 1U Rackmount

Above specifications are for devices without connector. Specifications may change without notice.

40-CH 100G Athermal AWG

workshop-2

Features

Established silica-on-silicon technology
Extremely low crosstalk
Low insertion loss
Low PDL
Low chromatic dispersion
Telcordia GR-1221-CORE qualified



Applications

DWDM transmission
Wavelength routing
Optical add/drop multiplexing

40-CH 100G Athermal AWG
Parameter

Specification
Channel Number

4

8

 8+E1 8+E2

18
Channel Wavelength (nm)

1270-1610 or 1271-1611
Channel Spacing (nm)

20
Passband (nm) Channels

±6.5
Upgrade port 1310+/-50 1260-1458
Isolation (dB) Adjacent

>30
Non-adjacent

>40
Upgrade port

>15
Insertion Loss (dB) Channels

1.0

1.5

 1.5 1.5

3.0
Upgrade port 1.2 1.2
Fiber Type Corning SMF-28 with 900pm loose tube
Polarization Dependent Loss (dB)

<0.2
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>55
Return Loss (dB)

>50
Maximum Power Handling (mW)

500
Operating Temperature (C)

-10~+75
Storage Temperature (C)

-40~+85
Package Dimension (mm) 8+1CH: L44 x W28 x H6 8+1CH: L53.8 x W28 x H818CH : L50 x W50 x H6

AWG CWDM4 Mux/Demux Module

workshop 3
AWG CWDM4 Mux-Demux Module
Parameter

Demux Specification
Operating Wavelength (nm)

1260~1660
Channel Spacing (nm)

20
Channel (nm)

1271,1291,1311,1331
Center Wavelength Tolerance (nm)

±2
Pass Band width@1dB Down (nm)

>12
Pass Band width@3dB Down (nm)

>15
Insertion Loss @23C (dB)

2.5
Isolation (dB)

>20
Uniformity (dB)

<1.0
TDL (dB)

<0.50
PDL (dB)

<0.50
Operation Temperature Range (C)

0~+70
Storage Temperature Range ( C)

-40~+85
Power Handling (mW)

300
Tensile Load (N)

5
Chip Size (mm)

9.5x1.6x1 (250um FA)
Fiber Jacket

G657A2
Fiber Length (mm)

24.5±1mm
Connector Types

LC/UPC Receptacle
AWG CWDM4 Mux-Demux Module-3
Parameter

Mux Specification
Operating Wavelength (nm)

1260- 1660
Channel Spacing (nm)

20
Channel (nm)

1271,1291,1311,1331
Center Wavelength Tolerance (nm)

±2
Pass Band width@1dB Down (nm) >10
Pass Band width@3dB Down (nm) >14
nsertion Loss @23C (dB)

< 3.2
solation (dB) N/A
WDL@ITU±6.5 (dB) <1.5
PDL (dB)

<0.50
Operation Temperature Range (C)

0~+70
Storage Temperature Range ( C)

-40~+85
Power Handling (mW) 300
Tensile Load (N)

5
Chip Size (mm) 5.5x1.6x1 (250um FA) 5.5x3x1 (75um FA)
Fiber Jacket

G657A2
-iber Length (mm) CWDM Channel:33.5+/-1mm COM: 15.5+/-1mm
Connector Types COM:LC/UPC Receptacle Others: LC ferrule

CEx-WDM

CEx-WDM











Features

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path



Applications

Line monitoring
WDM network
GPON system
EPON system
WDM PON networks

CEx-WDM-1
Parameter

GPON / XGPON / NGPON2 / OTDR
Center Wavelength (nm)

1260~1650
Pass Band (nm) GPON

1290 ~ 1330 & 1480 ~1500
XGPON

1260 ~ 1280 & 1575~1580
NGPON2

1524 ~1544 & 1596 ~1603
ODTR

1625* 1650
Insertion Loss (dB) COM — GPON

<0.8
COM™XGPON

<1.2
COM—NGPON2

≤1.4
COM -- ODTR

1.2
Isolation (dB) GPON@XGPON/NGPON2

>30
XGPON@GPON/NGPON2

>45
NGPON2@GPON/XGPON

>45
ODTR

>15
Polarization Dependent Loss (dB)

<0.2
Directivity (dB)

>50
Return Loss (dB)

>48
Maximum Power Handling (mW)

300
Operating Temperature (C)

-10~+70
Storage Temperature (C)

-40~+85
Package Dimension (mm)

W100xL80xH10

3 Ports 1310/1490/1550nm Filter Wavelength Division Multiplexer

3 Ports 1310-1490-1550nm Filter Wavelength Division Multiplexer-1







Features

Wide operating wavelength range
Low insertion loss
Ultra flat wide passband
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

Testing instrument
FTTH tri-play system

3 Ports 1310-1490-1550nm Filter Wavelength Division Multiplexer-2
Performance Specifications
Parameter

FWDM4/35

FWDM5/34

FWDM34/5
Pass Band Wavelength Range (nm)

1480-1500

1540-1560

1260-1360 &1480-1500
Reflection Band 1 Wavelength Range (nm)

1260-1360

1260-1360

1540-1560
Reflection Band 2 Wavelength Range (nm)

1540-1560

1480-1500
nsertion Loss (dB) Pass Channel

<0.6
Reflect Channel

<0.4
Pass Band Ripple (dB)

<0.3
solation (dB) Pass Channel

>30
Reflect Channel

>15
Insertion Loss Temperature Sensitivity (dB)

<0.5
Polarization Dependent Loss (dB)

<0.1
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>50
Return Loss (dB)

>45
Maximum Power Handling (mW)

300
Operating Temperature (°C)

-5~+75
Storage Temperature (°C)

-40~+85
Package Dimension (mm) For 250pm, 900pm

Φ5.5 x L38
For 2.0mm, 3.0mm

90 x 20 x 10

3 Ports 980/1550nm, 1480/1550nm Filter Wavelength Division Multiplexer

3 Ports 1310-1490-1550nm Filter Wavelength Division Multiplexer-1







Features

Wide operating wavelength range
Low insertion loss
Ultra flat wide passband
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

Testing instrument
FTTH tri-play system

fdwdm-2
Parameter MWDM-54

MWDM-59
Pass Channel Wavelength Range (nm) 1530~1565

1525-1600
Reflect Channel Wavelength (nm) 1450~1490

965~1000
Insertion Loss (dB) Pass Channel <0.6

<0.9
Reflect Channel <0.5

<0.7
Insertion Loss Variation (dB)

<0.3
Isolation (dB) Pass Channel >25

>30
Reflect Channel >15

>15
Insertion Loss Temperature Sensitivity (dB)

<0.5
Polarization Dependent Loss (dB)

<0.1
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>50
Return Loss (dB)

>50
Maximum Power Handling (mW)

300
Operating Temperature (°C)

-5~+75
Storage Temperature (°C)

-40~+85
Fiber Type Corning SMF-28e fiber

Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at pass port
Package Dimension (mm) For 250pm, 900pm

05.5 x L38
For 2.0mm, 3.0mm

90x20x10

1310/1490/ 1550nm CATV +PON WDM

Features

  • Wide bandwidth
  • High isolation
  • Low insertion loss
  • High stability and reliability

Applications

  • EDFA application
  • FTTH system

1310-1490-1550nm CATV +PON WDM
1310-1490-1550nm CATV +PON WDM-1
Parameter

4 Channels

8 Channels

16 Channels

 32 Channels
CATV wavelength Range (nm)

1540-1620
PON wavelength Range (nm)

1260-1500
Insertion Loss (dB) CATV - COM

<8

<11.6

<14.5

<17.8
COM-PON

<0.6

<0.6

<0.6

<0.6
Isolation (dB) CATV - COM(@PON)

>30
COM - PON(@CATV)

>15
Insertion Loss Temperature Sensitivity (dB)

<0.5
Polarization Dependent Loss (dB)

<0.1
Polarization Mode Dispersion (ps)

<0.1
Directivity (dB)

>50
Return Loss (dB)

>45
Maximum Power Handling (mW)

300
Operating Temperature ( C)

-5~+75
Storage Temperature (C)

-40~+85
Package Dimension (mm) 1x4

100x80x 10
1x8

120 x 80 x 18
1x16

140x114x18
1x32

19" 1U Rackmount

3 Ports, 4 Ports Polarization- Insensitive Optical Circulator

Features

  • Low insertion loss
  • Wide band high isolation
  • Low PDL
  • Compact in-line package
  • High stability and reliability
  • Epoxy free on optical path

1310-1490-1550nm CATV +PON WDM
3 Ports, 4 Ports Polarization- Insensitive Optical Circulator-2

Applications

  • Optical amplifier
  • Metro area network
  • Wavelength add / drop
  • Dispersion compensation
  • Bi-directional communication
Parameter

P Grade

3 Ports

4 Ports
Configuration

Port 1 to 2, Port 2 to 3

Port 1 to 2, Port 2 to 3, Port 3 to 4
Operation Wavelength (nm)

1310130 or 1550130
Insertion Loss (dB) Typical

0.6

1.0
Maximum

0.8

1.2
Typical Isolation (dB)

>50

N50
Minimum Isolation (dB)

>40

>30
Cross Talk (dB)

>50

250
Polarization Dependent Loss (dB)

<0.15

<0.2
Polarization Mode Dispersion (ps)

<0.1
Return Loss (dB)

>50
Power Handling (mW)

300
Operating Temperature (°C)

0~+70
Storage Temperature (°C)

-40~+85
Package Dimension (mm) For 250pm, 900pm

O5.5 x L50

05.5 x L68
For 2.0mm, 3.0mm

90 x 20 x 10
