FTTH fiber optical WDM FWDM Module 1310/1490/1550nm FBT splitter 1*2 coupler

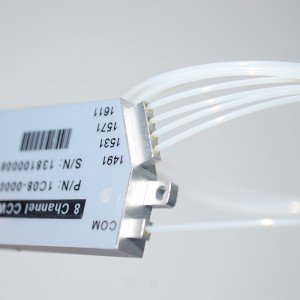

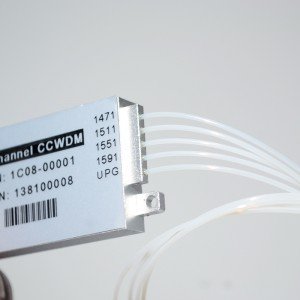

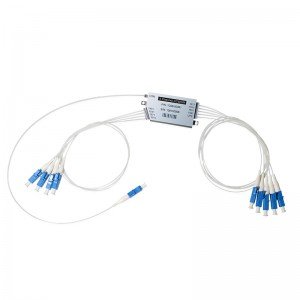

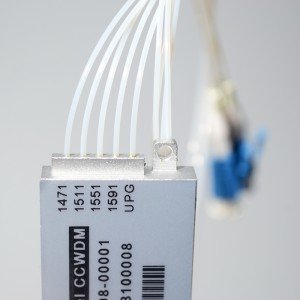

Qualfiber’s compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using DYS’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, Qualfiber’s Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.All Qualfiber’s CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE) Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability.

APPLICATION

1)Low Insertion Loss
2)Excellent Channel Isolation
3)High Stability & Reliability
4)Low Cost
5)Compact size

FEATURES

CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications

	Parameters	Unit	Specifications
1	Operating Wavelength Range	nm	1260 ~ 1620		1520 ~ 1570
2	Channel Spacing	—	20nm		100GHz
3	Channel Passband (@-0.5dB bandwidth)	nm	IUT ± 6.5		UT ± 0.125
4	Channel Quantity	—	C4CH	C8CH	C4CH	C8CH
5	Max. Pass Band Ripple	dB	<0.35		<0.4
6	Max. Channel Insertion Loss	dB	≤1.8	≤3.0	≤2.0	≤3.2
7	Min. Adjacent Channel Isolation	dB	>30		>25
8	Min. Non-Adjacent Channel Isolation	dB	>45		>35
9	Min. Express Channel Isolation		>13		>12
10	Min. Return Loss	dB	≥45
11	Max. PDL	dB	<0.1	<0.1	<0.20	<0.30
12	Insertion Loss Temperature Sensitivity	dB/℃	<0.005
13	Wavelength Temperature Shifting	nm/℃	<0.002
14	Max. Power Handling	mW	300
15	Directivity	dB	≥50
16	Operation Temperature Range	℃	-40 to +80
17	Storage Temperature Range	℃	-40 to +85
18	Fiber Jacket & Fiber Length	cm	Customize
19	Package Dimensions – 1	mm	100 * 80 * 10 or Customize
20	Package Dimensions – 2	mm	LGX Compatible
21	Package Dimensions – 3	mm	19” 1U Rack Mounted
22	Connector Type	–	SC/LC/FC or Customize
23	Fiber Type and Jacket Color		G.652D / G.657 A1 (or Customize)
