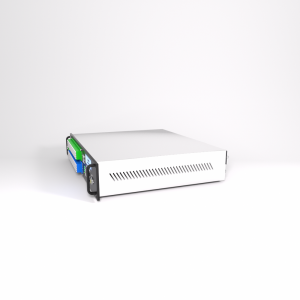

Qualfiber series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)’s output optical port multiplex 1310/1490n’s data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
Color:

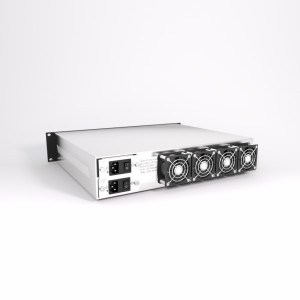

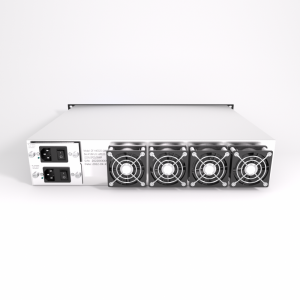

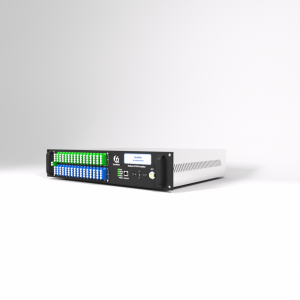

Qualfiber uses the world's top brand pump lasers and US OFS active fiber. Perfect APC, ACC, ATC control, and good ventilation and heat dissipation design ensure the long life and high reliability of PUMP Laser. RJ45 provides the SNMP network management interface. The full dot-matrix LCD on the front panel provides the operating parameters and alarms of the whole machine. Light is lost and the laser is automatically turned off, giving laser safety protection. All the optical ports can be installed on the front panel or can be installed on the rear panel. The product's high quality, high reliability and excellent cost performance, carrier-grade security reliability, and network management are ideal choices for system integrators and system operators.
PRODUCT FEATURE
•1540~1563nm operating bandwidth for optical amplifier
•500~10000mW (27~40mW) high output power
•Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
•High performance and high reliability
•19” 2U rack up to optional 8~64 up-link ports, which are used in
OLT; And 8~64 1550nm output optical ports, multiplex the
1310/1490nm data stream.
•Optional dual optical input, built-in 2 × 1 optical switch
•Dual power supply optional, 1+1 backup
•Lock and password function
•Can compatible with any FTTx PON technology:
EPON/GEPON, GPON, BPON, DPON
•Comprehensive SNMP management
•Efficient space, simple and reliable in construction/maintenance
•The industry's best performance-price ratio
MAIN APPLICATION
•FTTx PON
•RFoG
OPTIC/ELECTRICAL SCHEMA
TECHNIQUE INDEX
|
Performance |
Index |
Supplement | ||||
|
Min. |
Typ. |
Max. |
||||
|
Optical feature |
CATV operation wavelength |
(nm) |
1540 |
1563 |
CATV |
|
| OLT pass wavelength |
(nm) |
1310/1490 |
||||
| CATV pass wavelength loss |
(dB) |
0.8 |
1550nm |
|||
| OLT pass wavelength loss |
(dB) |
0.8 |
1310/1490nm |
|||
| CATV & OLT isolation |
(dB) |
40 |
||||
| Number of uplink optical ports (for OLT) |
(pcs) |
8 |
64 |
2U |
||
| CATV input power (Pi) |
(dBm) |
-10 |
≥+3 |
+10 |
||
| Total output power1) |
(dBm) |
27 |
40 |
2U |
||
| Number of output ports |
(pcs) |
16 |
64 |
2U |
||
| Each port output power |
(dBm) |
10 |
23 |
|||
| Difference of each output power |
(dB) |
-0.5 |
+0.5 |
|||
| Output power adjustable range |
(dBm) |
-10 |
0 |
Optional |
||
| Noise figure (Pin=0dBm) |
(dB) |
4.5 |
5.0 | |||
| Polarization dependence loss (PDL) |
(dB) |
0.3 | ||||
| Polarization dependence gain (PDG) |
(dB) |
0.4 | ||||
| Polarization mode dispersion (PMD) |
(ps) |
0.3 | ||||
| Input/output isolation |
(dB) |
30 |
||||
| Pump power leakage |
(dBm) |
-30 | ||||
| Echo loss |
(dB) |
55 |
APC |
|||
| Generalfeature | Network management interface |
RJ45 |
SNMP |
|||
| Power supply |
(V) |
90 |
265 |
220VAC
|
||
