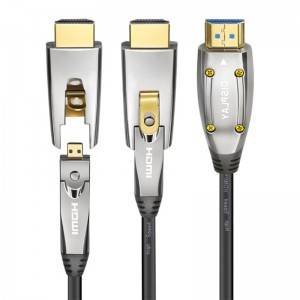

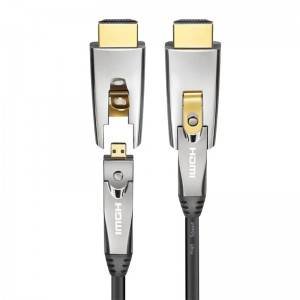

HDMI Fiber Optic Cable is an easy-to-use secure connection for home video distribution, conference room presentation systems, classroom projection systems, digital signage and HD video displays.
Color:
Features
- Support data rate up to 18 Gbps
- Support 3D and max resolution up to 4K@60hz 4:4:4
- Fiber provides the speed and bandwidth required for the highest image quality without the need for extender or amplifiers.
- Fiber optic cable is EMI-free and can be installed with multiple pull cable to provide flexibility for remote component locations.
- Solve common problems for installers in long-distance HDMI and concealed installations in homes and businesses.
Discriptions
| Product Name | HDMI 4K Active Optical Cable | |
| Units | Transmitter (Source) | Receiver (Sink) |
| HDCP & DDC | HDCP 2.2 Fully Support bi-directional EDID and HDCP communication | |
| Video Bandwidth | 6 Gbps/x3Channel (max)+ Clock. | |
| Supported Resolution & Distance | 4K*2K/60HZ too 300M | |
| O/E Converter | 4 channel 850 nm VCSEL array | 4 CH GaAs PD array |
| Connector Type | HDMI type A | |
| Cable Type | Hybrid type with OM2 fiber and copper wire | |
| Cable Length | 15m/20m/30m/40m/50m/100m/150m/200m/300m (with +/-30cm tolerance) Custom length available. | |
| Cable Outer Diameter | 4.5mm | |
| Jacket Outer Material | PVC/TPU(Custom) | |
| Differential Input | 100 ohm (typ) | |
| Power Consumption | 250mW (max) | |
| Power Supply | Non external power required | |
