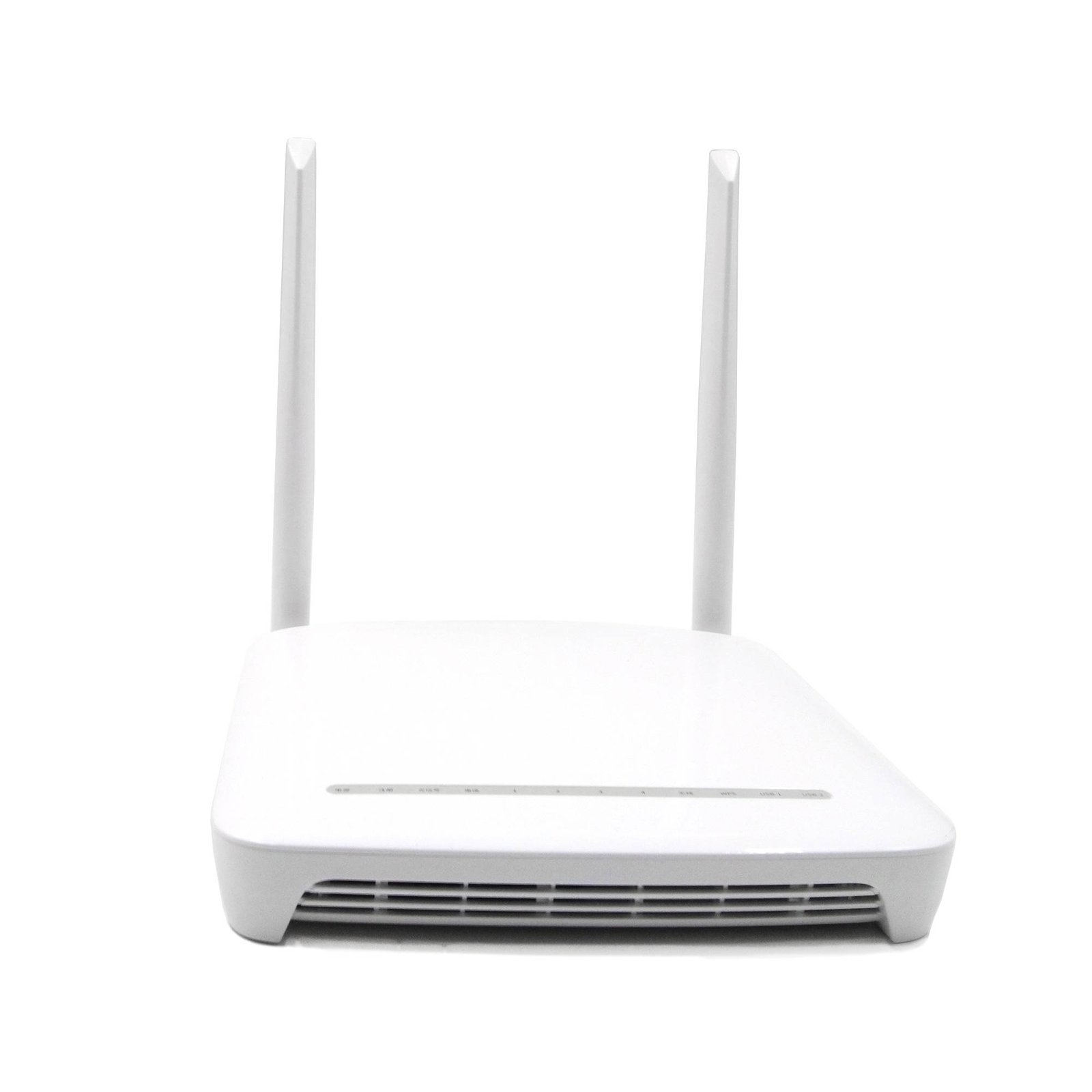

This GPON ONT is developed for the broadband access market based on GPON technology to meet the needs of Telecom operators for broadband access and FTTH. Together with OLT central office products and EMS network management system. It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) technical requirements specification. The device supports the up-link and down-link symmetric 1Gbps transmission rate, providing users with good QOS guarantee and flexible bandwidth allocation. Ethernet business and IP integrated services. Integrated Voice function, together with ONU to form a single-fiber FTTH solution. Integrated wireless function, fully compliant with 802.11n/802.11ac wireless standard protocol, built-in high-gain directional antenna, wireless have 1*2.4G and 1*5G, with strong penetrating power and wide coverage, providing users with more efficient data transmission guarantee.
Color:
| Item | Unit | SPEC | |
| Optical SPEC | Working wavelength | nm | PON：TX1310，RX1490;CATV：1150～1600 |
| The light emitting power | dBm | 1.5 ~ +5(GPON)-1 ~ +4（EPON） | |
| The light receiving sensitivity | dBm | ≥ -27 | |
| Optical fiber connector | / | PON：SC/UPC，TV IN：SC/APC | |
| Ethernet interface |
4GE |
| POTS |
2 |
| USB |
2 |
| Software |
HGU |
| WiFi |
2.4GHz 2*2 300Mbps 802.11n & 5GHz 2*2 900Mbps 802.11ac |
Data Services
The ONT is delivered with 10/100,10/100/1000 Base-T interface, supporting:
Ÿ Auto-negotiation and MDI/MDIX auto-sensing
Ÿ Built-in layer-2 switch
Ÿ Advanced data features such as VLAN tag manipulation, classification, and filtering
n Video Services
The ONT supports video contents delivered in the form of data (by multicast or unicast).
n Voice Services
The models with voice port can support voice transmission services.
GPON Interface
Compliant with ITU-T G.984 GPON standards
BoSA on board optical solution
1.244 Gbps Burst Mode Upstream Transmitter
2.488 Gbps Downstream Receiver
Compliant with ITU-T G.984.2 Amd1, Class B+
Wavelengths: US 1310nm, DS 1490nm
Multiple T-CONTs per device
Multiple GEM Ports per device
Flexible mapping between GEM Ports and T-CONT
Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
AES-128 Decryption with key generation and switching
FEC (Forward Error Correction) in both directions
DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
Mapping of GEM Ports into a T-CONT with priority queues based scheduling
Support Multicast GEM port and incidental broadcast GEM port.
Ethernet Interface
Ethernet port auto negotiation or manual configuration
MDI/MDIX automatically sense
Virtual switch based on 802.1Q VLAN
VLAN tagging/detagging per Ethernet port
OAM
Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
Alarming and performance monitoring
Remotely software image download over OMCI, as well as activation and rebooting
Hold two software sets with software image integrity checking and automatic rollback
Working Environment
Temperature: -5℃ ~ 45℃
Humidity: 5% ~ 95% relative humidity
Power Supply
+12V 0.5A/1.0A (feed via external AC/DC adapter)
2-PIN power adaptor input
Dying Gasp support
Power Consumption: less than 10W
