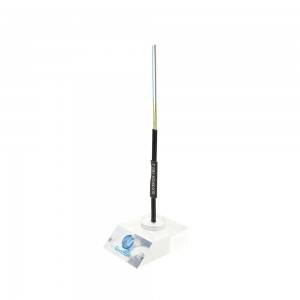

GJYXFCH is a non-metallic strength member, low-smoke halogen-free sheath, self-supporting butterfly drop optical cable.

The optical cable structure is to place the optical fiber (or optical fiber ribbon) between two parallel strengthening members, and at the same time place a metal suspension wire at one end in parallel, and then extrude a layer of flame-retardant polyolefin sheath (LSZH); the number of fiber cores can be 1 Core, 2-core, 4-core.

Features:

●Optical cable has small outer diameter, light weight and low construction cost

●Optical cable has high flattening resistance and tension resistance, and the self-supporting structure can meet the flying span of less than 50 meters.

●Using LSZH flame-retardant materials to meet the performance requirements of flame-retardant and environmental protection for optical cables used outdoors (inside)

●The optical fiber adopts the bending loss insensitive optical fiber that meets the requirements of ITU-T G.657A&G.657B standard, and the bending radius is smaller.

●The self-supporting butterfly-shaped optical cable suspension wire adopts high carbon steel wire or steel strand, which has superior tensile performance

Application:

For FTTH, both indoor and outdoor, self-supporting
