1GE xPON mini ONU is a new energy-saving and environment-friendly passive optical network terminal of Qualfiber. It provides a 10/100/1000Mbps Base-T LAN interface, one optical PON interface, support router function, suitable for home and small business.
Color:
Mini XPON ONU 1GE Smart QF-GS101S for FTTH and FTTB Cost-Effective and Simple
| Uplink: | 1 GPON Interface, Symmetric 1.25Gbps | Downlink: | 2.5G/1.25G |
|---|---|---|---|
| Wavelength: | Tx1310nm/Rx1490nm | Gross Weight: | 0.21kg |
| Dimension: | 75mm*75mm*25mm | ||
| High Light: |
xpon ont, gpon/epon optical network terminal |
||
1GE xPON mini ONU is a new energy-saving and environment-friendly passive optical network terminal of Qualfiber. It provides a 10/100/1000Mbps Base-T LAN interface, one optical PON interface, support router function, suitable for home and small business.
Click to see 1GE EPON ONU mini in the same type. OEM is available.
Why we choose this mini ONU instead of multi-LAN-interface and Wi-Fi ONU?
-There are always many obstacles, walls, furniture, and other things may reduce the WiFi signal especially when you’re living a big house or building. Then the WiFi extender became popular a few years ago. However, we have to switch the WiFi name and reconnect when we move to another place. Then we get mesh routers now, which solved all the problems. So this cost-effective
means power-saving and prevent waste of the multi-LAN-interface and WiFi when we already have a router or mesh router. The cabling of LAN became much easier when you use the mesh router.

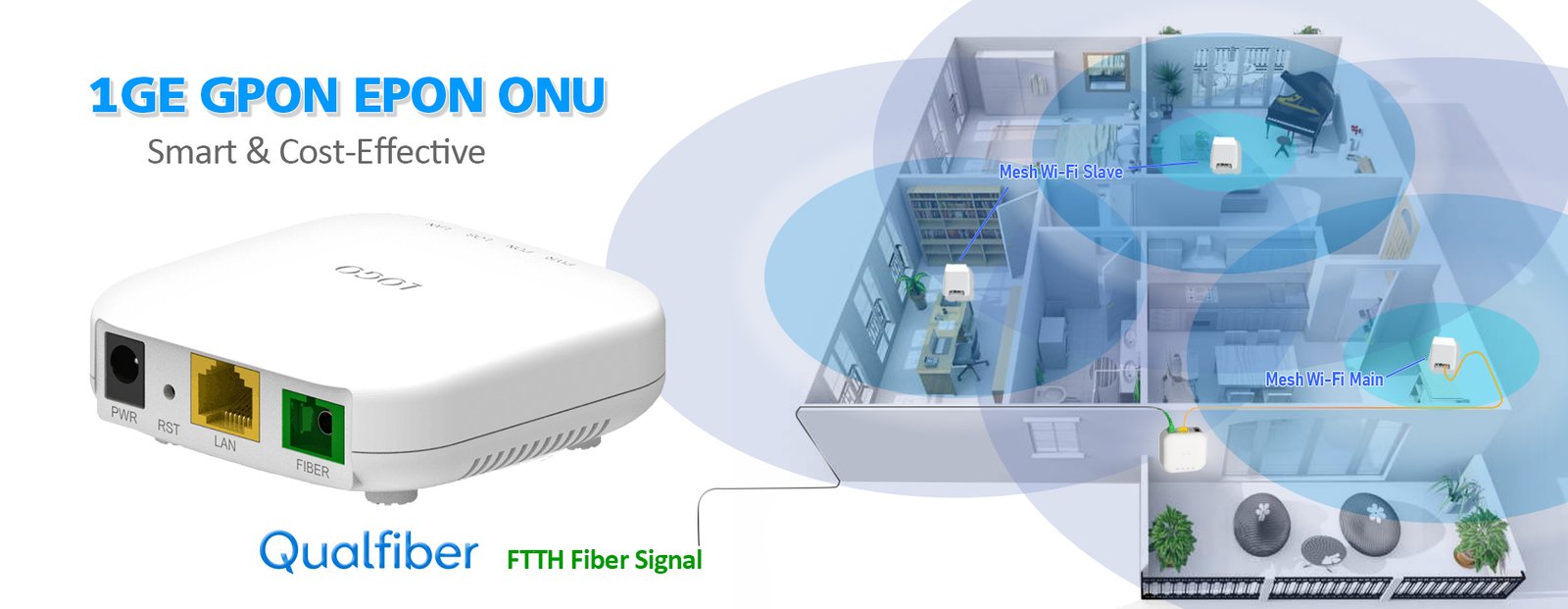

- Please check the picture below and you may find 1GE ONU is enough when your customers don’t need the IPTV or VoIP service. or these services will be provided by other lines.
Features
It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.
The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 2.5Gbps bandwidth reasonably, guaranteeing a reliable QoS.
Supports IGMP multicast, effective use of broadband, multicast VLAN, ITU-T G.984 and EPON CTC3,0 protocol, remote management through OLT and local management as well.
Supports FEC and DBA, IEEE802.1Q VLAN protocol, remote loopback, and network status diagnosis；
Supports storm control, NAT, PPPOE, DHCP Server Client, Route;
Technical Parameter
| Module | GPON ONU 1GE |
|---|---|
| User interface | 1*10/100/1000M RJ45 port. |
| PON | Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps(GPON) 1.25Gbps(EPON) Network coverage radius: 20KM Optical receive sensitivity:≥-28dBm Continuous light power: 0.5dBm~+5dBm Security: ONU authentication mechanism |
| Protocol | Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP |
| Route | Support NAT Support PPPOE Support Server Client Support Route |
| VLAN | Port-based VLAN GVRP IEEE 802.1Q VLAN |
| QoS | Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR, SP and FIFO queue scheduling algorithm Port rate limit |
| Safety | IEEE 802.1x, access control based upon Port; support local and remote RADIUS. CHAP,EAP certification; Storm control, port protection, |
| Management | Various management modes such as Web, TELNET Debug function. |
| Size | 80mm(L)×80mm(W)×25mm(H) |
| Environment | Operating temperature:0℃～60℃; Operating humidity:10%～85% non-condensing |
| Storage temperature:-40℃～80℃; Storage humidity:5%～95% non-condensing |
|
| Power supply | 110～240VAC 12V/0.5A DC Power interface size:2.1mm/5.5mm or Customized |
| Power Consumption | 6W |
Order Information
| Module | Description |
|---|---|
| QF-XS101S | XPON ONU, One 10/100/1000M RJ45 port,1 Fiber interface for GPON or EPON, Color: White/Black/Creamy/Customized |
