1Ge Lan CATV xPON ONU Support RF for GPON and EPON network Featured Image

》

《

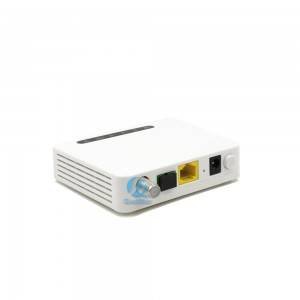

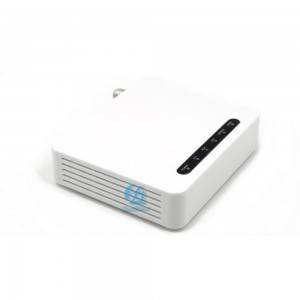

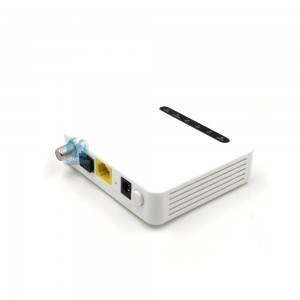

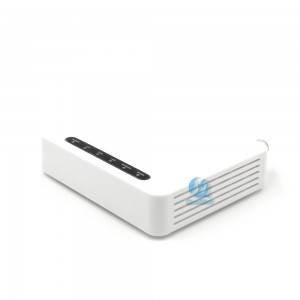

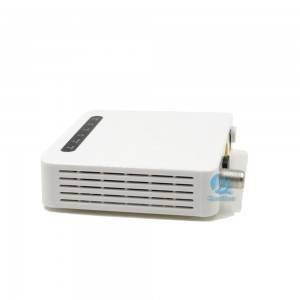

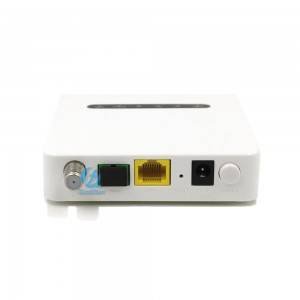

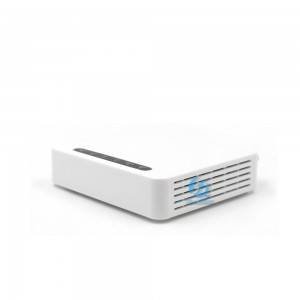

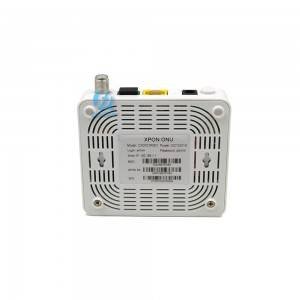

1Ge Lan CATV xPON ONU Support RF for GPON and EPON network

1Ge xPON ONU was designed as the most cost-effective for FTTx networks and Broadcasting networks, 1Ge LAN with xPON(for both GPON and EPON networks), 1 single-mode CATV port is good performance for RF channel television, 1 SC/APC or 1 SC/UPC port for the bridge of FTTH to UTP networks, 1 power supply ports and 1 on/off switch for easy management. it saved many cost on components and chip’s requirement, the end-users can free extend to other LAN devices, such as high-performance routers, Mesh router, and switches, etc.

Model Name: QF-CX010C Model Series No. CX0101R001

Color:

Send email to us Add To Cart

Product Detail

Overview

1GE+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class
FTTH application provides data service access.
1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch
automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of
service (QoS) guarantees to meet the technical performance of the module of China Telecom
EPON CTC3.0.
1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1GE+CATV is designed by Realtek chipset 9601D

Feature

Supports Dual Mode (can access GPON/EPON OLT).
Supports SFU and HGU of EPON CTC 3.0 standard
Supports GPON G.984/G.988 standards and IEEE802.3ah.
Support CATV interface for Video Service and remote control by Major OLT
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of vlan configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and maintenance
Support Route PPPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
Compatible with popular OLT(Huawei, ZTE, FiberHome…)

Specification

Technical Item	Details
Pon interface	1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nmSC/APC connectorReceiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBmTransmission distance: 20KM
LAN interface	10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
CATV Interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dBOptical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input）AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBmMER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED	6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN
Push-Button	2, for Function of Power on/off, Reset
Operating condition	Temperature : 0℃～50℃Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<3W
Net Weight	<0.2kg

Panel lights and Introduction

Pilot	Status	Description
POWER	On	The device is powered up.
POWER	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN	On	Port is connected properly (LINK).
	Blink	Port is sending or/and receiving data (ACT).
	Off	Port connection exception or not connected.
NORMAL	On	Input optical power is between -18dbm and 2dBm
NORMAL	Off	Input optical power is higher than 3dbm or lower than -18dBm
WARN	On	Input optical power is higher than 2dBm or lower than -18dBm
WARN	Off	Input optical power is between -18dBm and 2dBm
