Loose tube style, figure-8 optical fiber cable, Jelly compound, optical fiber cable with metallic central strength member of steel wire. Filling compound and water-proof tape are surrounded with corrugated AL incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises. High strength tracking-resistant sheath
Color:
Technical Parameters
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ | |
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Cable Specification:
Item Name:Fiber optical cable GYTC8A
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

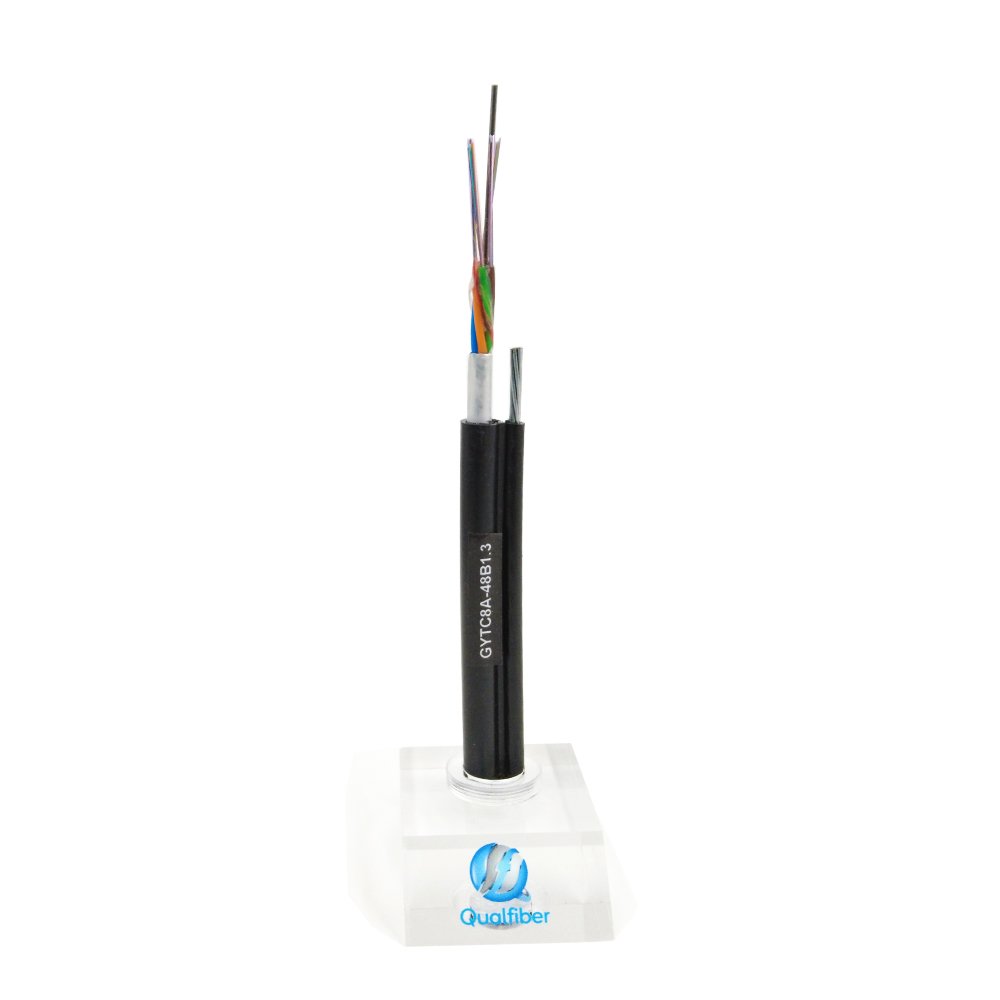

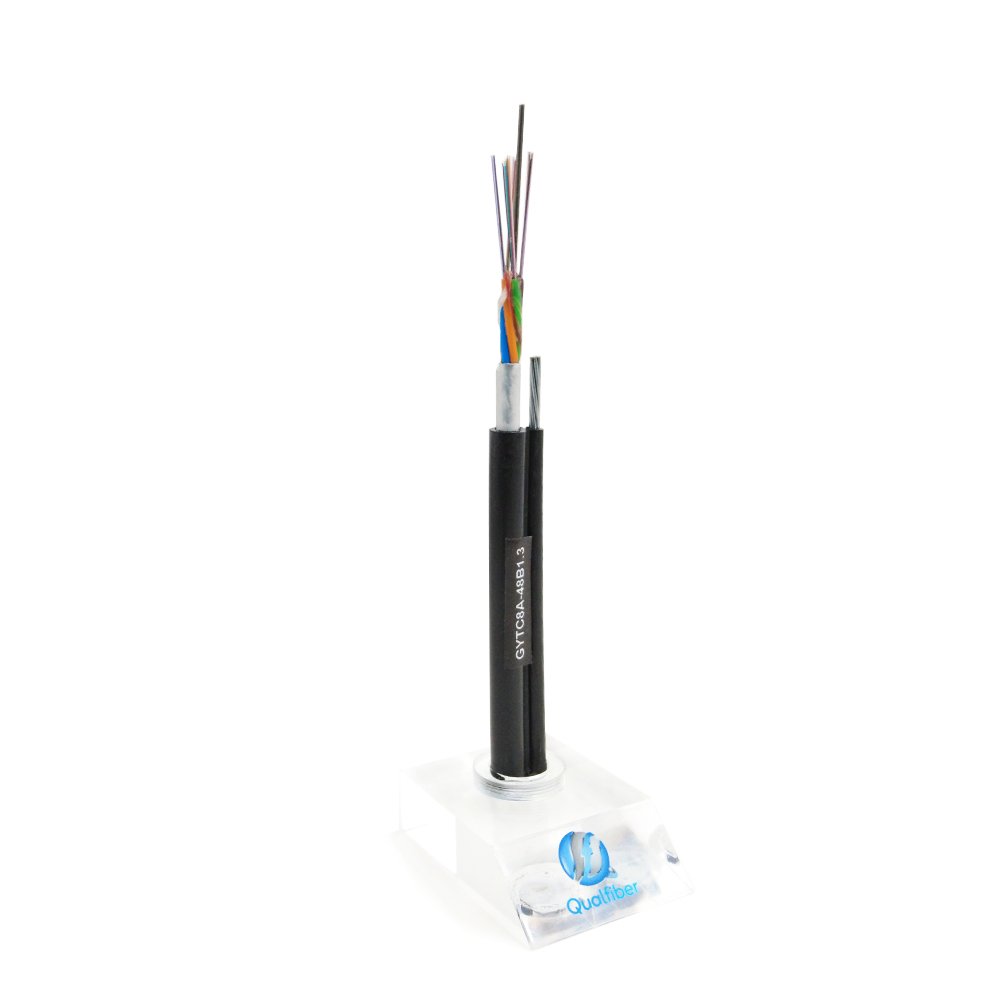

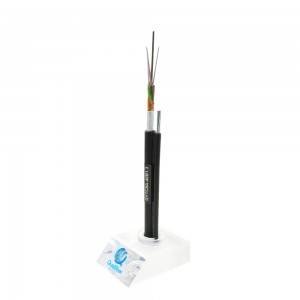

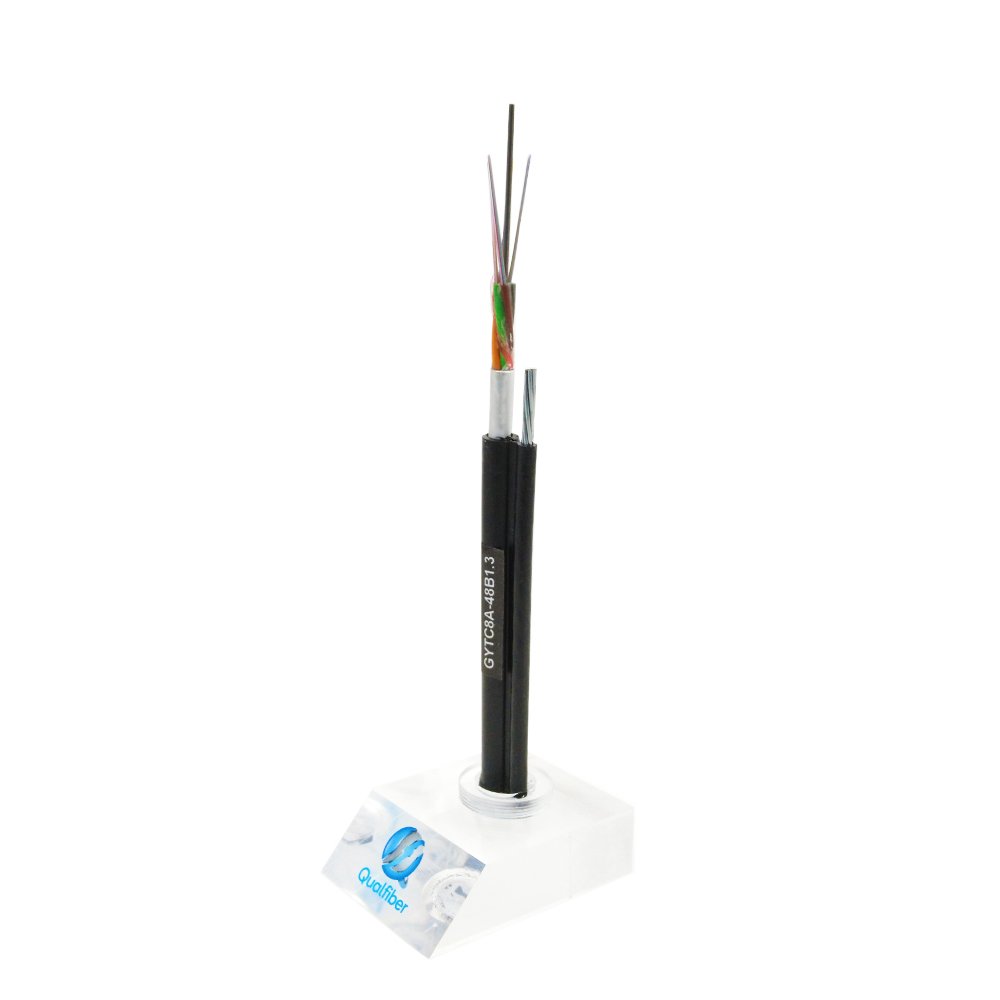

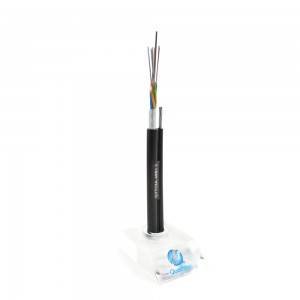

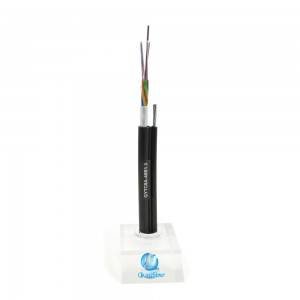

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
