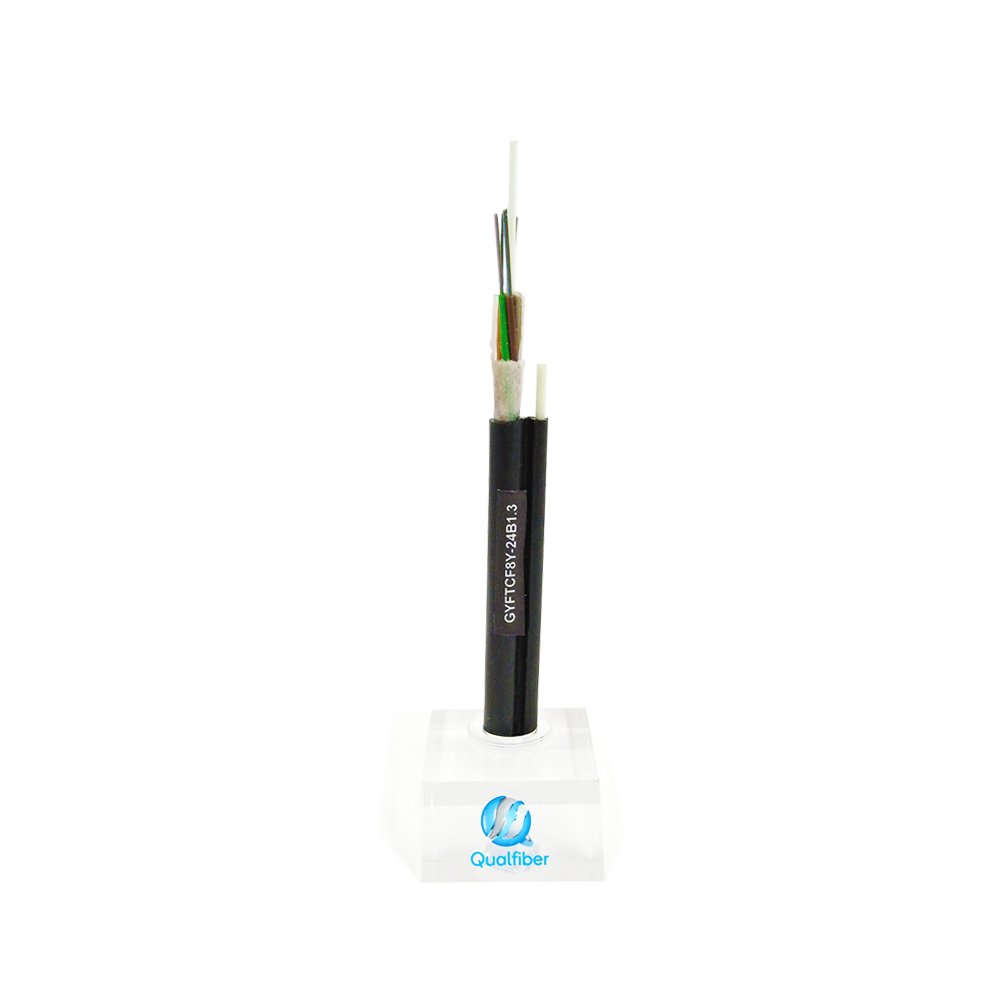

GYFTCF8Y is the FO cable which put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled
with a waterproof compound. Non-metallic FRP tape on the outside of the loose tube is added with water blocking material to ensure the longitudinal water resistance of the optical cable. A non-metallic reinforcing element FRP is added to the outside of theoptical cable and then extruded into a polyethylene sheath to form the cable.
Color:
DESCRIPTION
This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled
with a waterproof compound. Non-metallic FRP tape on the outside of the loose tube is added with water blocking material to ensure the longitudinal water resistance of the optical cable. A non-metallic reinforcing element FRP is added to the outside of theoptical cable and then extruded into a polyethylene sheath to form a cable.
with a waterproof compound. Non-metallic FRP tape on the outside of the loose tube is added with water blocking material to ensure the longitudinal water resistance of the optical cable. A non-metallic reinforcing element FRP is added to the outside of theoptical cable and then extruded into a polyethylene sheath to form a cable.
FEATURES
Full-section water-blocking structure to ensure water-proof and moisture-proof performance of the product;
Non-metallic structure, the product has good compression resistance and flexibility;
can effectively prevent lightning;
Small diameter, light weight, easy to lay;
APPLICATIONS
Aerial
|
Type
|
Max.Attenuation
|
Tensile test
|
Crush test
|
Min.Bending radius
|
|||
|
1310nm
|
1550nm
|
Short term
|
Long term
|
Short term
|
Long term
|
||
|
GYFTCF8Y
|
0.36dB/km
|
0.25dB/km
|
1500N
|
600N
|
1000N
|
300N
|
20D
|
