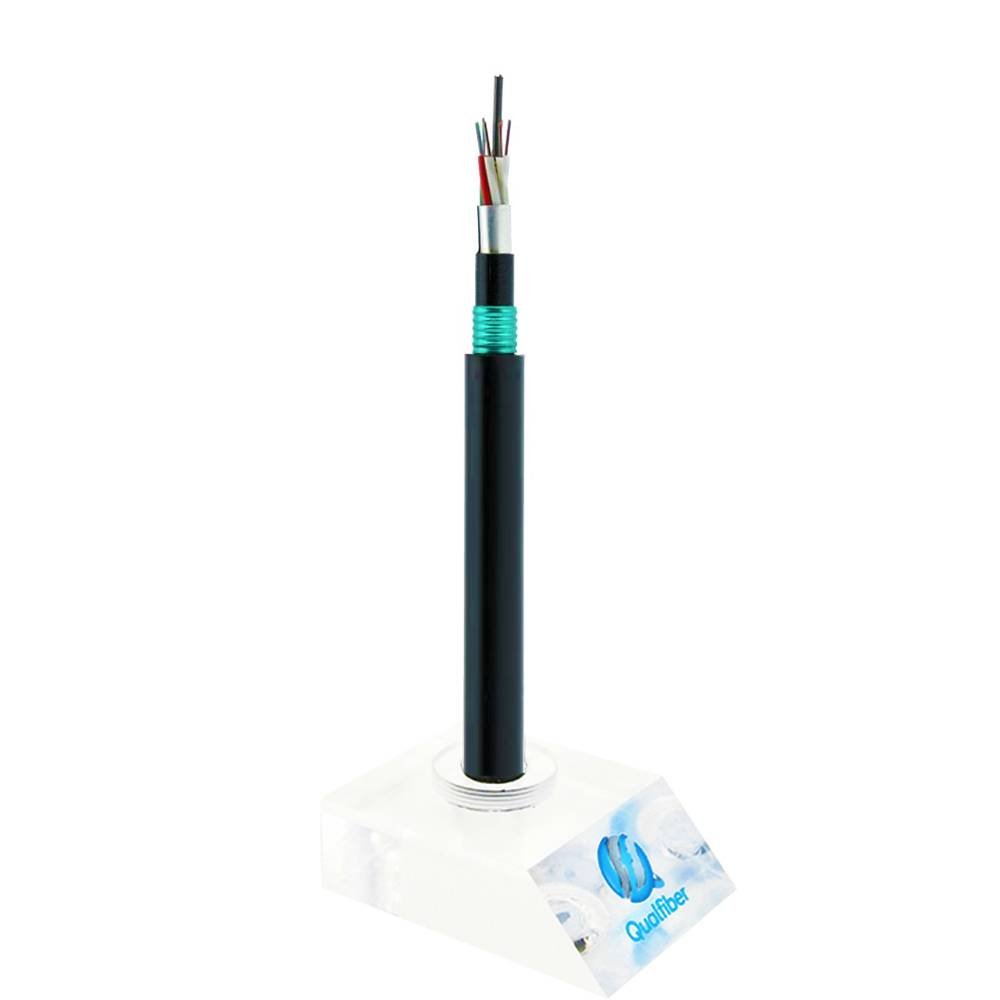

GYTZA53 (metal strengthening member, loose tube layer stranded filling type, aluminum-polyethylene bonded sheath, longitudinally wrapped corrugated steel tape armor, flame-retardant polyethylene sheath outdoor optical fiber cable for communication) The structure of the optical cable is a single-mode or multi-mode The optical fiber is sheathed in a loose tube filled with waterproof compound made of high modulus plastic. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The plastic-coated aluminum tape is longitudinally wrapped and then extruded with a polyethylene inner sheath, and the double-sided plastic-coated steel tape is longitudinally wrapped and then extruded with a flame-retardant polyethylene sheath.
Color:
Features:
- Good mechanical and temperature performance and flame-retardant property;
- High strength loose tube that is hydrolysis resistant;
- Special tube filling compound ensure a critical protection of fiber;
- Crush resistance and flexibility;
- The following measures are taken to ensure the cable water tight: steel wire used as central strength member; 100% cable core filling; loose tube filling compound; APL moisture barrier; PSP enhancing moisture barrier; Water-blocking material.
Applications:
- Duct
- Aerial
- Direct buried
Technical Parameters:
Fiber Count | Tubes | Fillers | Cable Weight (kg/km) | Bending Radius (mm) | Tensile Strength (N) | Cruch Resistance (N/100mm) | |||
Static | Dynamic | Long term | Short term | Long term | Short term | ||||
2-6 | 1 | 7 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
8-12 | 2 | 6 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
14-18 | 3 | 5 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
20-24 | 4 | 4 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
26-30 | 5 | 3 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
32-36 | 6 | 2 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
38-42 | 7 | 1 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
44-48 | 8 | 0 | 316 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
50-60 | 5 | 3 | 392 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
62-72 | 6 | 2 | 392 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
74-84 | 7 | 1 | 392 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
86-96 | 8 | 0 | 392 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
98-108 | 9 | 1 | 460 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
110-120 | 10 | 0 | 460 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
122-132 | 11 | 1 | 501 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
134-144 | 12 | 0 | 501 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
Standards:
Comply with Standard YD/T901-2001 as well as IEC60794-1.
Optical Parameters:
50/125µm | 62.5/125µm | G.652 | G.655 | ||
Attenuation(+20°C) | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
@1300nm | ≤1.0dB/km | ≤ 1.0dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | ||
@1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | |||
Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤ 1260nm | ≤ 1450nm |
Transport/Storage/Operating Temperature: -40°C ~ +60°C
