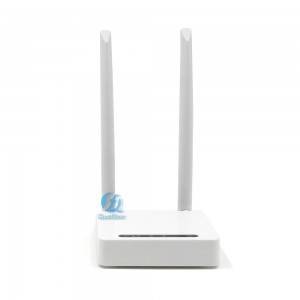

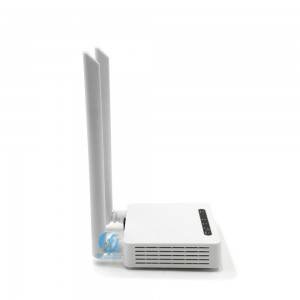

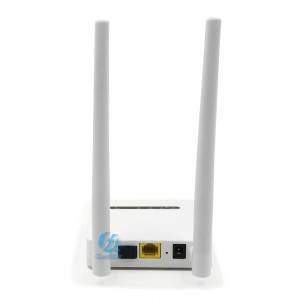

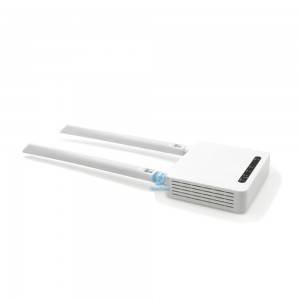

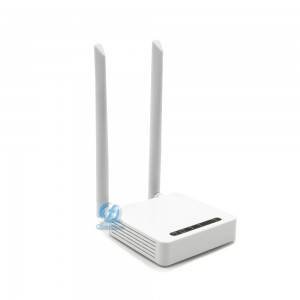

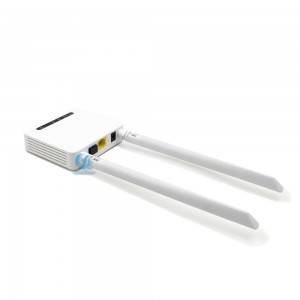

1Ge xPON ONU was designed as the most cost-effective for FTTx networks and broadcasting networks, 1Ge LAN with xPON(for both GPON and EPON networks), 2 antennas for Wifi, 1 SC/APC, or 1 SC/UPC port for the bridge of FTTH to UTP networks, 1 power supply ports and 1 on/off switch for easy management. it saved many cost on components and chip’s requirement, the end-users can free extend to other LAN devices, such as high-performance routers, Mesh router, and switches, etc.
l 1GE+WIFI is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1GE+WIFI is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1GE+WIFI adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1GE+WIFI is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up to 300Mbps.
l XPON 1GE+WIFI are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l XPON 1GE+WIFI is designed by Realtek chipset 9602C
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports SFU and HGU of EPON CTC 3.0 standard
l Supports GPON G.984/G.988 standards
l Support 802.11n WIFI (2×2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and WEB Management
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT (HW, ZTE, FiberHome…)
1×10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45connector
WIFI Interface
Compliant with IEEE802.11b/g/nOperating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBiSupport: Multiple SSID Channel:13Modulation type: DSSS、CCK and OFDMEncoding scheme: BPSK、QPSK、16QAM and 64QAM
LED
7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS
Push-Button
4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition
Temperature : 0℃～+55℃Humidity :10%～90%（non-condensing）
Storing Condition
Temperature : -40℃～+60℃Humidity :10%～90%（non-condensing）
Power supply
DC 12V/1A
Power Consumption
<3W
Net Weight
<0.15kg
Panel lights and Introduction
Pilot Lamp
Status
Description
WIFI
On
The WIFI interface is up.
Blink
The WIFI interface is sending or/and receiving data (ACT).
Off
The WIFI interface is down.
WPS
Blink
The WIFI interface is securely establishing a connection.
Off
The WIFI interface does not establish a secure connection.
PWR
On
The device is powered up.
Off
The device is powered down.
LOS
Blink
The device doses not receive optical signals or with low signals.
Off
The device has received optical signal.
PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.
LAN
On
Port is connected properly (LINK).
Blink
Port is sending or/and receiving data (ACT).
Off
Port connection exception or not connected.
Application
l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
l Typical Service：Broadband Internet access, IPTV etc.
