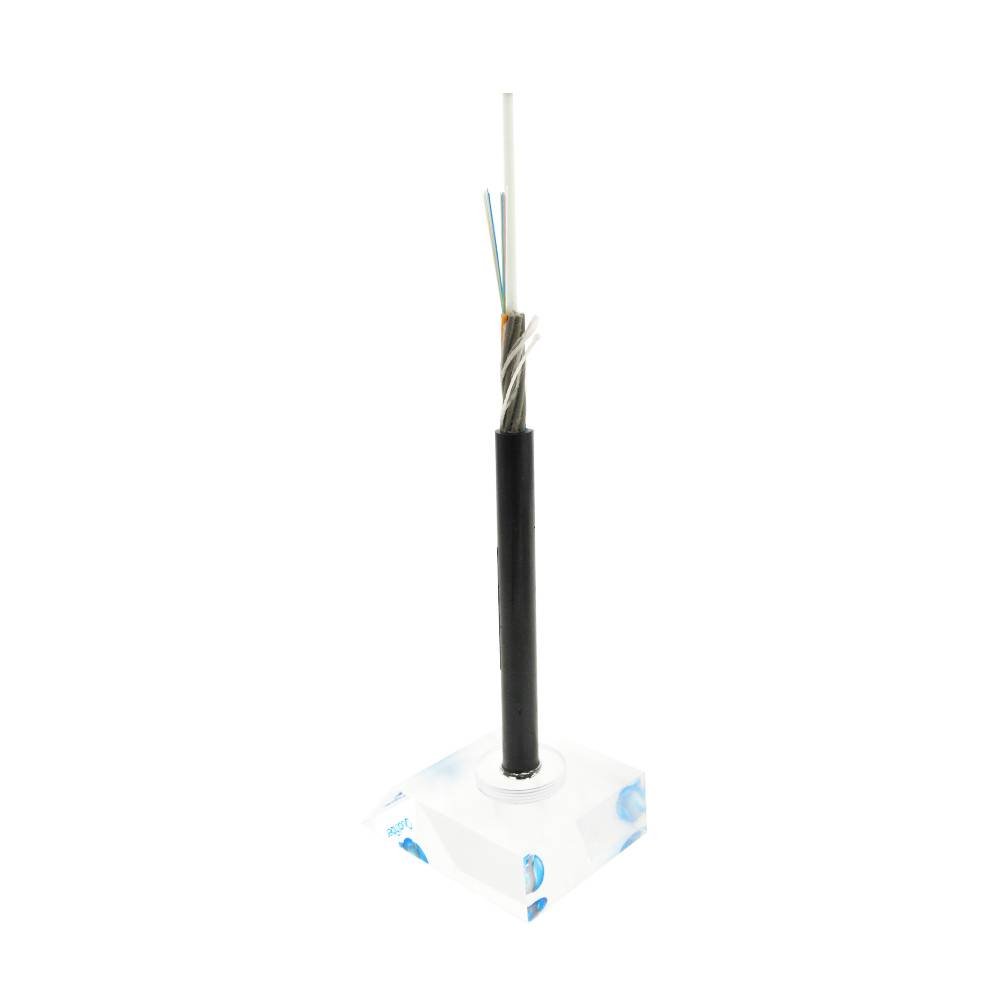

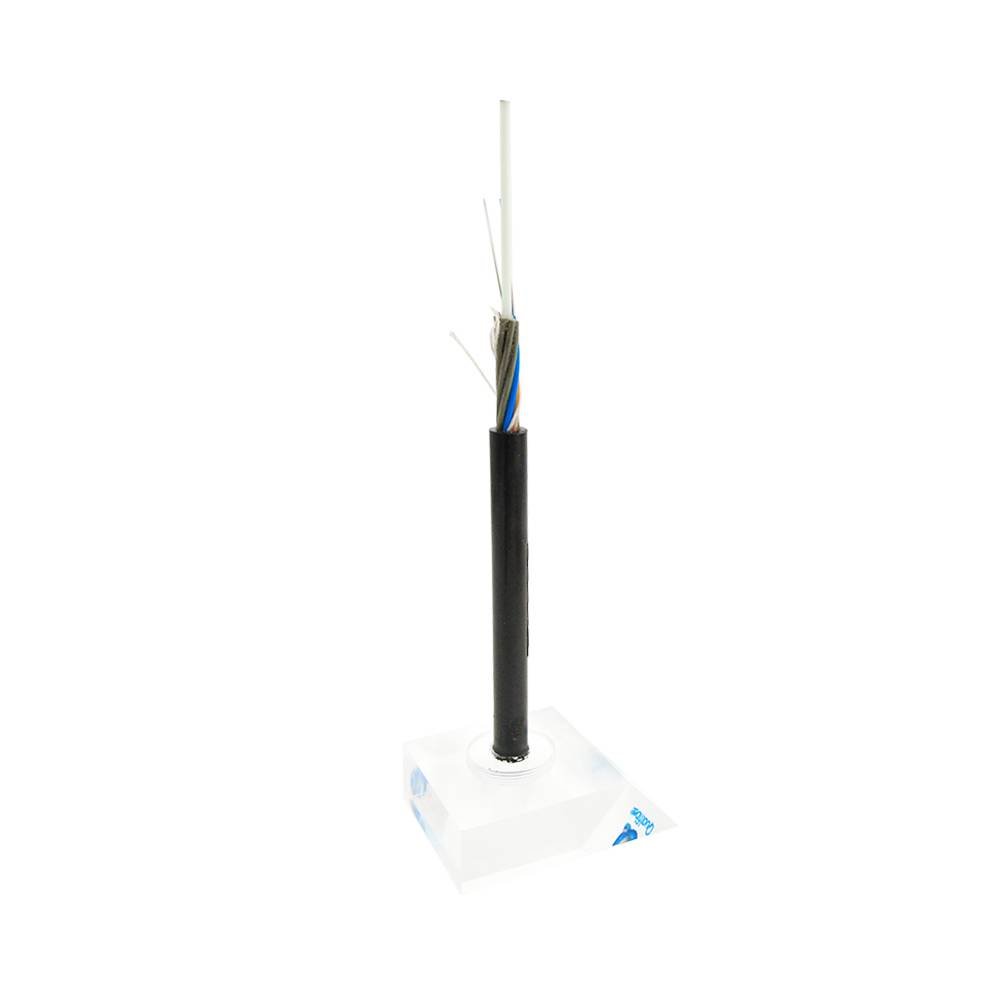

GYFTY (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modulus plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP). For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core. line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compounds and polyethylene sheaths.
Color:
Description
GYFTY (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modulus plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP). For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core. line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compounds and polyethylene sheaths.
Structure details
No. of fiber | 24F | 48F | |||||
No. of tube | 6 | 6 | |||||
Fiber per tube | 4 | 8 | |||||
Nom. tube diameter | 1.6mm±0.05mm | 1.8mm±0.05mm | |||||
Nom. tube thickness | 0.3mm±0.05mm | 0.3mm±0.05mm | |||||
Loose tube | Material | PBT | Color | Standard spectrum | |||
Central strength member | Material | FRP | Diameter | 1.6mm (24F) | |||
1.8mm (48F) | |||||||
Tube filling | Material | Filling compound | |||||
Water blocking system | Material | Filling gel | |||||
Reinforce strength member | Material | Dupont kevlar yarn | Type | 800D*4 (24F) | |||
800D*8 (48) | |||||||
Out sheath | Material | HDPE | Color | Black | |||
Diameter | 7.0±0.5mm (24F) | Thickness | 1.1±0.1mm | ||||
8±0.5mm (48F) | 1.3±0.1mm |
Fiber Color
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Color |
Tube Color
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color |
Mechanical and environment performance
Tensile strength | Long term(N) | 600N | |||||
Short term(N) | 1200N (24F) | ||||||
2000N (48F) | |||||||
Crush load | Long term (N/100mm) | 300N/100mm | |||||
Short term (N/100mm) | 1000N/100mm | ||||||
Bending radius | Dynamic (mm) | 20D | |||||
Static (mm) | 10D | ||||||
Temperature | -20℃~+70℃ |
Fiber Performance
Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 | |||
Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
Coating diameter | um | 242±7 | 242±7 | 242±7 |
Package
Packing material: Wooden drum.
Packing length: 4km per drum.
