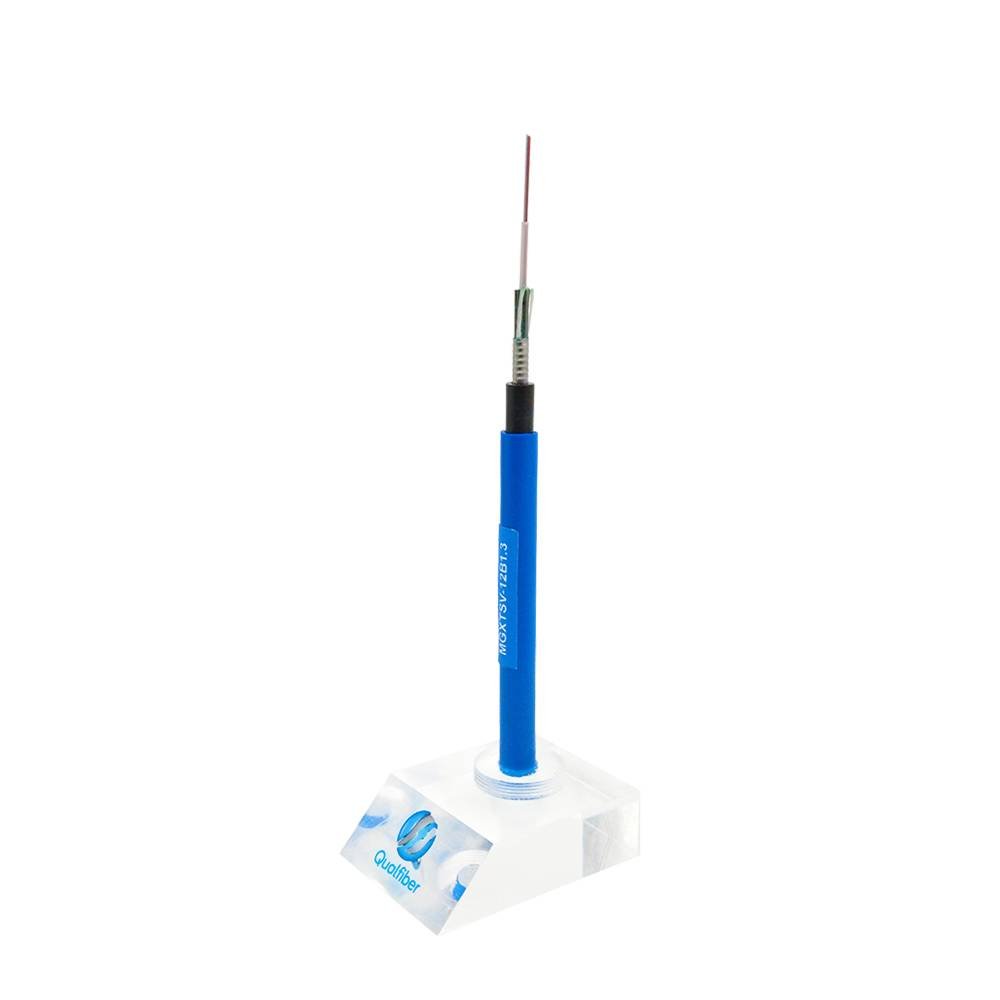

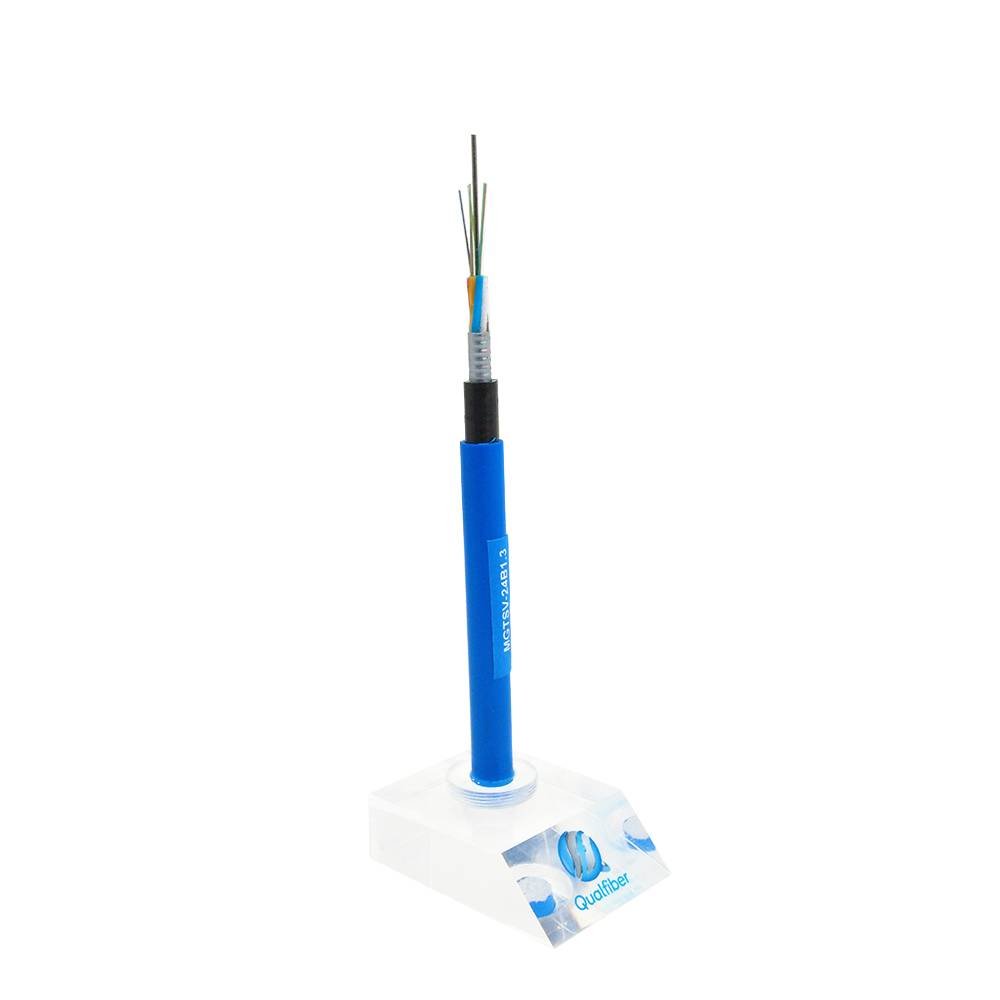

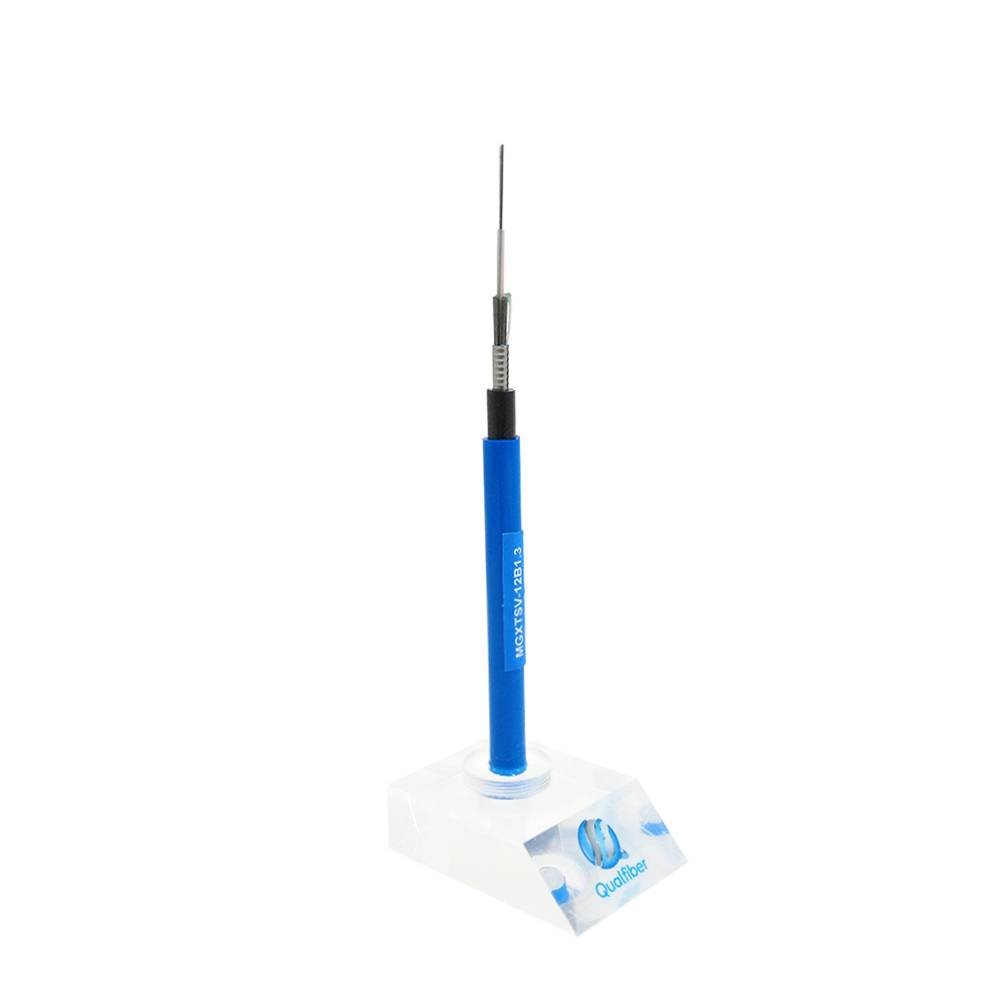

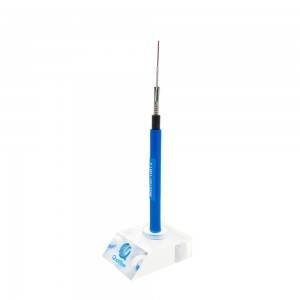

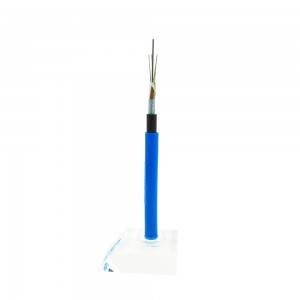

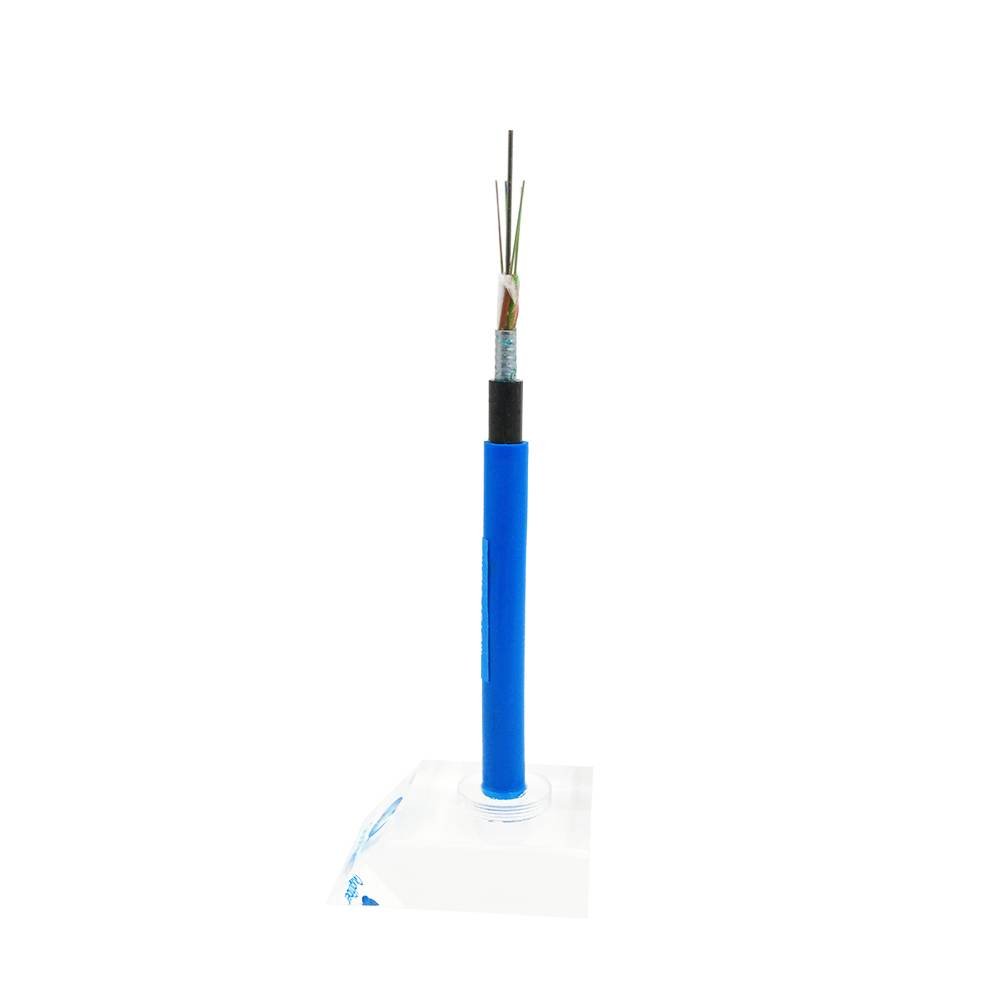

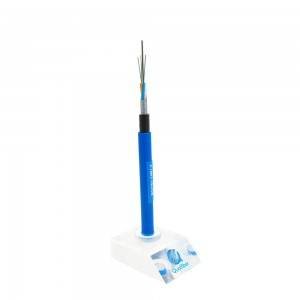

MGTSV fiber optic cable, the fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PE outer sheath.
Color:
Features:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. Crush resistance and flexibility
6. APL enhancing moisture-proof and anti rodent
7. Good water resistance material prevent longitudinal seepage
8. Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance
Application:
Duct/Aerial/Direct Buried
Technical Parameters:
| Cable type |
Fiber count |
Tubes | Fillers | Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
| MGTSV- 2-6 |
2-6 | 1 | 4 | 9.5 | 112 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 8-12 |
8-12 | 2 | 3 | 9.5 | 112 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 14-18 |
14-18 | 3 | 2 | 9.5 | 112 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 20-24 |
20-24 | 4 | 1 | 9.5 | 112 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 26-30 |
26-30 | 5 | 0 | 9.5 | 112 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 32-36 |
32-36 | 6 | 0 | 10.0 | 131 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 38-48 |
38-42 | 4 | 1 | 11.0 | 188 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV- 50-60 |
50-60 | 5 | 0 | 11.8 | 188 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-62-72 | 62-72 | 6 | 0 | 12.4 | 204 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-74-84 | 74-84 | 7 | 1 | 13.8 | 255 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-86-96 | 86-96 | 8 | 0 | 13.8 | 255 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-98-108 | 98-108 | 9 | 1 | 15.6 | 284 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-110-120 | 110-120 | 10 | 0 | 15.6 | 284 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-122-132 | 122-132 | 11 | 1 | 17.4 | 340 | 600/1500 | 300/1000 | 10D/20D |
| MGTSV-134-144 | 134-144 | 12 | 0 | 17.4 | 340 | 600/1500 | 300/1000 | 10D/20D |
Note:For more details, please contact our sales
