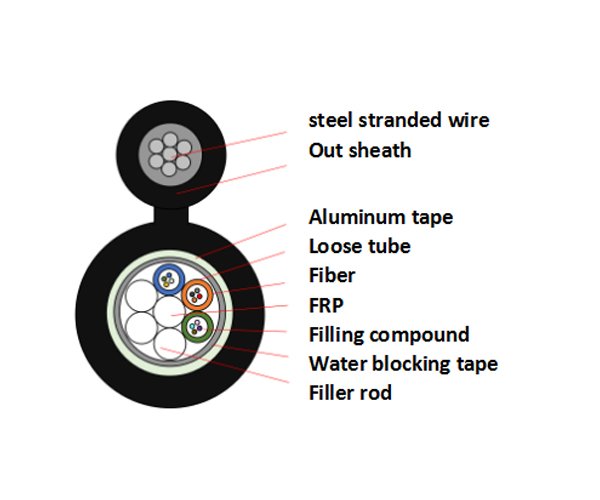

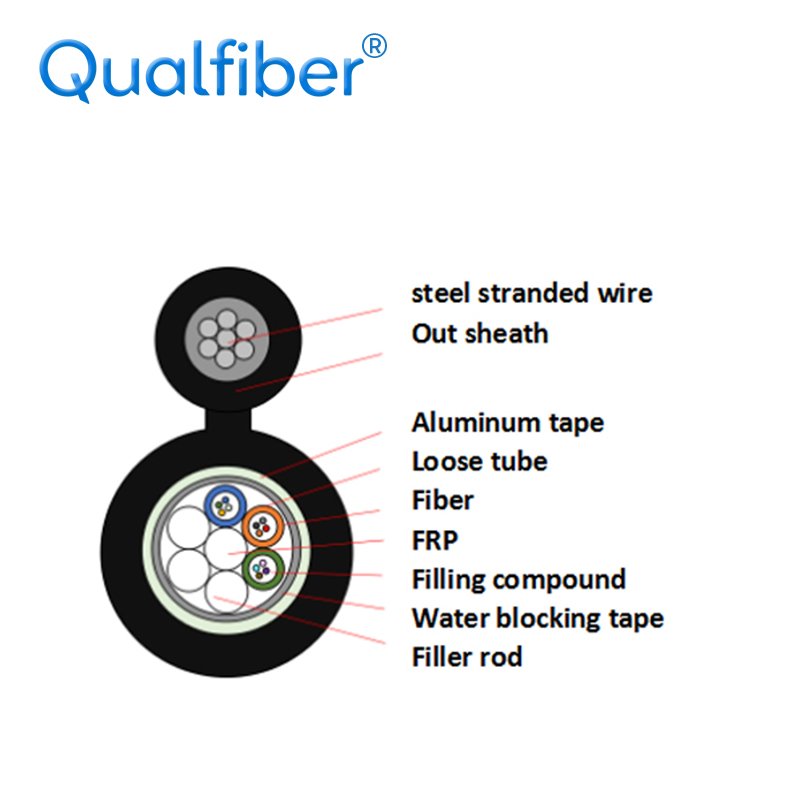

Ing kabel GYTC8A, serat singlemode / multimode dipanggonke ing tabung ngeculke, dene tabung longgar
bebarengan karo anggota kekuatan tengah logam dadi inti kabel sing kompak lan bunder, lan
bahan-bahan
terdampar minangka bagean dhukungan rampung karo sarung PE dadi struktur angka 8.
Color:
Katrangan
Rincian struktur
| Cacah serat | 12F | ||||||
| Serat SM | Jinis serat | G652D | core concentricity error |
≤0.5um | |||
| MFD | 8.6 ～ 9.8um | cladding non-circularity |
≤0,7% | ||||
| Diameteripun Cladding | 124.8 ± 0.7um | Fiber colore | blue white yellow green grey red orange black pink violet brown aqua |
||||
| Loose buffer | Materi | PBT | Werna | blue white yellow | |||
| Diameter | 2.0±0.05mm | Kekandelan | 0,3 ± 0,05mm | ||||
| Rod pangisi | Materi | PP | Werna | putih | |||
| Diameter | 2.0 | Qty | 2 | ||||
| Anggota kekuatan | Diameter | FRP | Diameter | Φ2.0 | |||
| Self-supported wire | Diameter | galvanize steel stranded wire | Diameter | 1.2*7-3.6 | |||
| Gallus | Kekandelan | 2X2.5(+/-0.5) | |||||
| Sistem pamblokiran banyu | Diameter | water blocking tape | |||||
| Waja | Diameter | Pita aluminium | |||||
| Metokake sarung | Diameter | PE | Werna | Blck | |||
| Diameter | 6.6(±0.3)×11.5(±0.3) | Kekandelan | 2.0±0.2 | ||||
Werna
| Ora. | Serat 1 | Serat 2 | Serat 3 | Serat 4 | Tube 1 |
| Werna |  |
 |
 |
 |
 |
| Ora. | Serat 5 | Serat 6 | Serat 7 | Serat 8 | Tube 2 |
| Werna |  |
 |
 |
 |
 |
| Ora. | Serat 9 | Serat 10 | Serat 11 | Serat 12 | Tube 3 |
| Werna |  |
 |
 |
 |
 |
Kinerja mekanis lan lingkungan
| Kekuwatan tegangan | Max. | 5000N | |||||
| crush load | Max. | 1000N / 100mm | |||||
| Radi mbengkongaken | Dinamis | 20D | |||||
| Statis | 10D | ||||||
| Temperature | -20 ℃ ～ + 70 ℃ | ||||||
Kinerja Serat
| Gaya Serat | Unit | SM G652D | MM 50/125 | MM 62.5 / 125 | ||||
| Kondisi | mm | 1310/1550 | 850/1300 | 850/1300 | ||||
| Attenuasi | dB / km | ≤0.36/0.22 | ≤3.0 / 1.0 | ≤3.0 / 1.0 | ||||
| Diameteripun Cladding | um um | 125 ± 1 | 125 ± 1 | 125 ± 1 | ||||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||
| Dhiameter lapisan | um um | 242 ± 7 | 242 ± 7 | 242 ± 7 | ||||
Paket
Bahan kemasan: drum kayu.
Dawane kemasan: 2km saben drum utawa kustomisasi.
