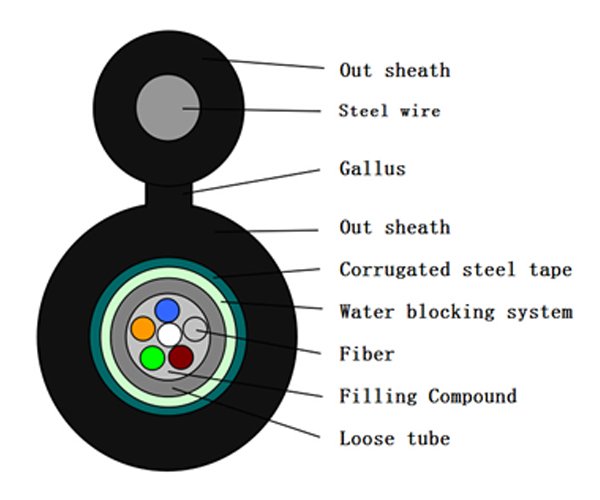

The structure of the standard figure-eight self-supporting central tube optical cable is that single-mode or multi-mode optical fibers are sheathed in a loose tube made of high modulus plastic, and the tube is filled with a water-blocking compound. The center of the cable core is the loose tube. The loose tube is coated with plastic (wrinkle) steel tape longitudinally. The water blocking tape between the steel tape and the loose tube ensures the compactness of the optical cable and the longitudinal water blocking and is placed parallel to the steel strand. Simultaneously squeeze the figure 8 sheath into a cable.
Color:
Incazelo
Idatha yezobuchwepheshe
| Cha | 2 ~ 8 | 10 ~ 12 | 14 ~ 24 | ||
| Imodeli ye-Fibre | G.652D | ||||
| I-Loose Tube | Okokusebenza | I-PBT | |||
| Ububanzi （± 0.06） mm | 2.0 | 2.4 | 2.8 | ||
| Ubukhulu （± 0.03） mm | 0.32 | 0.35 | 0.4 | ||
| UMax.Core NO./Tube | 2 ~ 8 | 10 ~ 12 | 14 ~ 24 | ||
| Ungqimba Lokuvimba Amanzi （Okokusebenza） | Amateji wokuvimba amanzi | ||||
| Izikhali | Okokusebenza | ITape lensimbi | |||
| Ubukhulu （± 0.03） mm | 0.25 | ||||
| Messenger Wire | Okokusebenza | Umucu wensimbi obunjiwe | |||
| Usayizi （± 0.05） mm | 2.7mm （0.9 × 7 7 | ||||
| Iwebhu | Okokusebenza | I-MDPE | |||
| Ubukhulu （± 0） mm | 2.0 × 3.0 | ||||
| Ngaphandle kwe-Sheath① | Okokusebenza | I-MDPE | |||
| Ubukhulu （± 0,1） mm | 1.5 | ||||
| Ngaphandle kwe-Sheath② | Okokusebenza | I-MDPE | |||
| Ubukhulu （± 0,1） mm | 1.7 | 1.8 | 1.8 | ||
| Ububanzi bekhebula （± 0.5） mm | 7.2 × 15.4 | 7.6 × 15.8 | 8.0 × 16.2 | ||
| Cable Wetght （± 10） kg | 110 | 115 | 125 | ||
| Min. ukugoba irediyo | Ngaphandle Kokungezwani | I-10.0 × Ikhebula-φ | |||
| Ngaphansi Kwezinkinga Eziphezulu | 20.0 × Ikhebula-φ | ||||
| Ibanga lokushisa （℃） |
Ukufaka | -20 ~ + 60 | |||
| EzokuThutha nokuGcina | -40 ~ + 70 | ||||
| Ukusebenza | -40 ~ + 70 | ||||
Umbala wefibre
| Cha. | 1 | 2 | 3 | 4 | 5 | 6 |
| Umbala |  |
 |
 |
 |
 |
|
| Cha. | 7 | 8 | 9 | 10 | 11 | 12 |
| Umbala |  |
 |
 |
 |
 |
 |
| Cha. | 13 | 14 | 15 | 16 | 17 | 18 |
| Umbala |  |
 |
 |
 |
 |
 |
| Cha. | 19 | 20 | 21 | 22 | 23 | 24 |
| Umbala |  |
 |
 |
 |
 |
 |
Izici ze-single-mode optical fiber (ITU-T Rec. G.652.D)
| Into | Ukucaciswa |
| Uhlobo lwefig | Imodi eyodwa |
| Izinto zefayibha | Kubunjiwe i-silica |
| Ukuqina kokuqina @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.36 dB / km £ 0.32 dB / km £ 0,22 dB / km £ 0,30 dB / km |
| Ukuyeka kokukhomba | £ 0,05 dB |
| Intambo enqunyiwe | £ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| I-Zero-dispersion slope | £ 0,092 ps / (nm2.km) |
| Ukuhlakazwa kwe-Chromatic @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
I- £ 3.5 ps / (nm. Km) £ 5.3 ps / (nm. Km) £ 18 ps / (nm. Km) £ 22 ps / (nm. Km) |
| I-PMDQ (isilinganiso se-Quadrature *) | £ 0,2 ps / km1 / 2 |
| Ububanzi bensimu yemodi @ 1310 nm | 9.2 ± 0,4 um |
| Iphutha lokugxila kweCore / Clad | £ 0.5 um |
| Ububanzi be-Cladding | 125.0 ± 0,7 um |
| Ukulengiswa okungasiyisiyingi | £ 1,0% |
| Ububanzi bokunamathela okuyisisekelo | 245 ± 10 um |
| Ileveli yokuhlola ubufakazi | I-100 kpsi (= 0.69 Gpa), 1% |
| Ukuthembela izinga lokushisa 0oC ~ + 70oC @ 1310 & 1550nm |
£ 0,1 dB / km |
Isicelo:
| CHA. | Into | Isidingo | |
| 1 | Isilinganiso Esishubile | Ukufakwa kwamakhebula w / o Isilayezi | 2700N |
| I-CableResidual w / o Isilayezi | 800 800 N | ||
| 2 | Ukumelana Okubi | Isikhathi esifushane | I-1000 (/ 100mm) |
| Isikhati eside | 300 (/ 100mm) | ||
Ukumaka uSheath
Umbala wokumaka umhlophe, kepha uma kudingeka lokho kuphawulwa, ukumaka umbala omhlophe kuzoprintwa kusesimweni eshlukile.
Ukucaciswa ngezikhathi ezithile kokumakwa ubude kuvunyelwe uma womabili amamaki angomakhelwane ecacile.
Womabili lamaphethelo ekhebula abekwa uphawu lokushisa oluncibilikayo lokugcina ukunqanda ukungena kwamanzi.
