Segondè siyal ak ponp pouvwa segondè konbineur (HSP) fèt pou konbine lazè ponp ak lazè siyal nan prensipal fib double a. SPC a ka aplike nan pi devan, bak oswa doub-fen rapid ponpe.
Color:
Deskripsyon
1.0 Deskripsyon
The High Power Signal and Pump Combiner (HSP) is designed for combining pump laser and signal laser into the main double cladding fiber. The SPC can be applied in forward, backward or double-end pumping schemes.
2.0 optik ak operasyon Espesifikasyon
| Atik | Espesifikasyon | Min. | Tip. | Max. | Inite | Nòt |
| 2.01 | Siyal longèdonn | 1000 | 1060 | 1100 | NM | |
| 2.02 | Pon an longèdonn | 800 | 915 | 1000 | NM | |
| 2.03 | Polarizasyon | O aza | PM Customizable | |||
| 2.04 | Rejim operasyon | CW | ||||
| 2.05 | Fib longè | 1.5 | m | Default | ||
| 2. 06 | Ranje tanperati opere | 0 | +70 | ° C | ||
| 2. 07 | Tanperati Depo | -40 | +85 | ° C | ||
| 2. 08 | Refwadisman Metòd | Fwad kondiksyon anba a | ||||
3.0 konbinezon fibre tipik
| Atik | Confi. | Ponp Fib | Siyal Fib |
Sòti Fib |
Power Handling |
Efikasite ponp | Pouvwa siyal | Siyal IL | Remak |
| 3.01 | (6 + 1) × 1 | 105/125 106.5 / 125 135/155 |
X / 250 DCF | Y / 130DCF Y / 250DCF |
300W / janm | 97% | 2kW | 0.2dB | X, Y = 14, 20, 25, 30 X≤Y |
| 3.02 | X / 400 DCF | Y / 250DCF Y / 400DCF |
300W / janm | 97% | 2kW | 0.2dB | X, Y = 20, 25, 30 X≤Y |
||
| 3.03 | 200/220 220/242 225/240 |
20 / 400DCF | Y / 250DCF Y / 400DCF |
600W / janm | 97% | 3kW | 0.2dB | Y = 20, 25, 30 | |
| 3.04 | 25 / 400DCF | Y / 250DCF Y / 400DCF |
600W / janm | 97% | 3kW | 0.2dB | Y = 25, 30 | ||
| 3.05 | 30 / 400DCF | Y / 250DCF Y / 400DCF |
600W / janm | 97% | 3kW | 0.2dB | Y = 30 | ||
| 3.06 | (18 + 1) × 1 | 105/125 106.5 / 125 |
X / 250 DCF | Y / 130 DCF | 150W / janm | 96% | 3kW | 0.2dB | X, Y = 20, 25, 30 X≤Y |
| 3.07 | X / 400 DCF | Y / 130 DCF Y / 250 DCF |
150W / janm | 96% | 3kW | 0.2dB | X, Y = 20, 25, 30 X≤Y |
||
| 3.08 | 135/155 | X / 400 DCF | Y / 130 DCF Y / 250 DC F |
150W / janm | 96% | 3kW | 0.2dB | X, Y = 20, 25, 30 X≤Y |

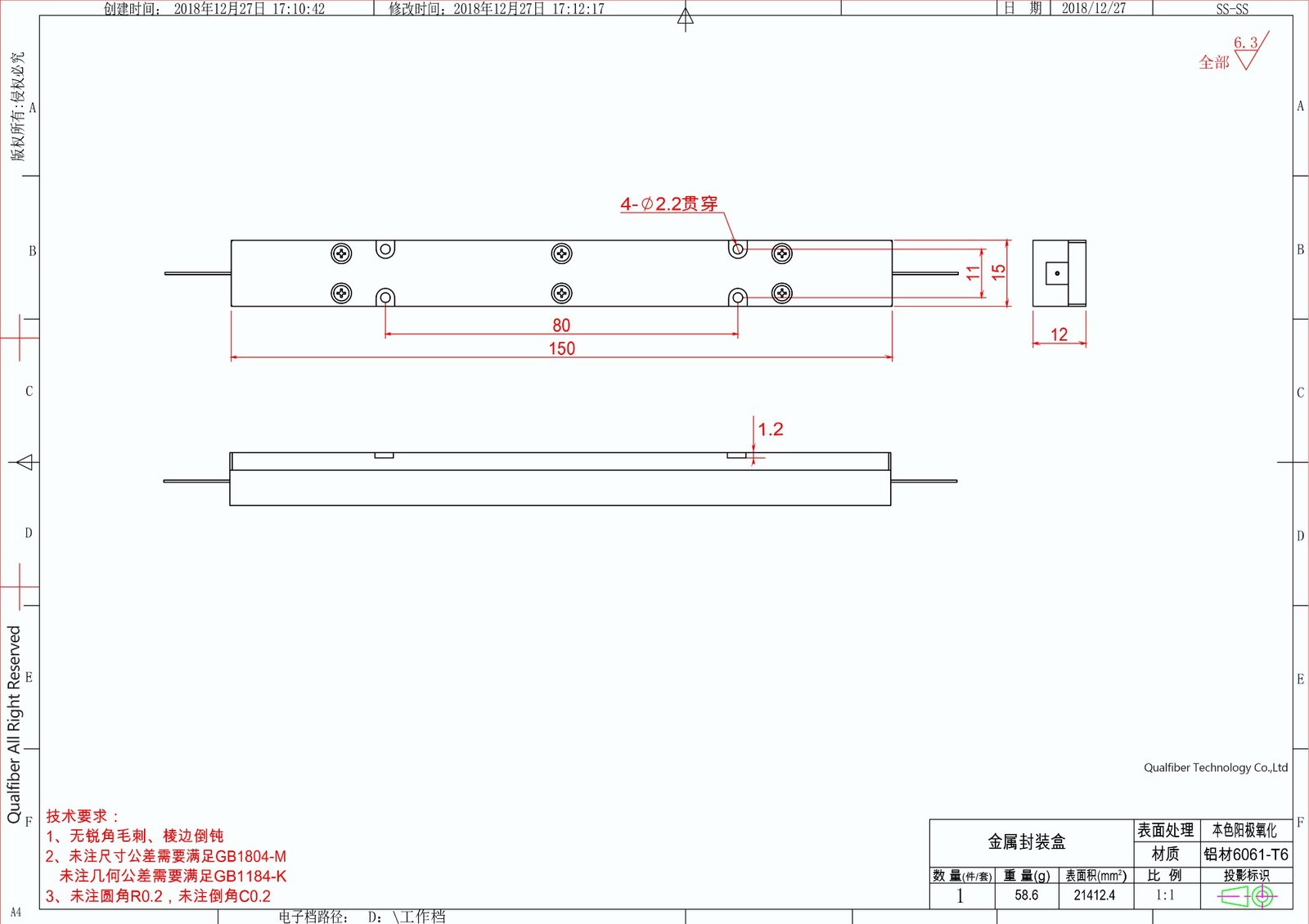

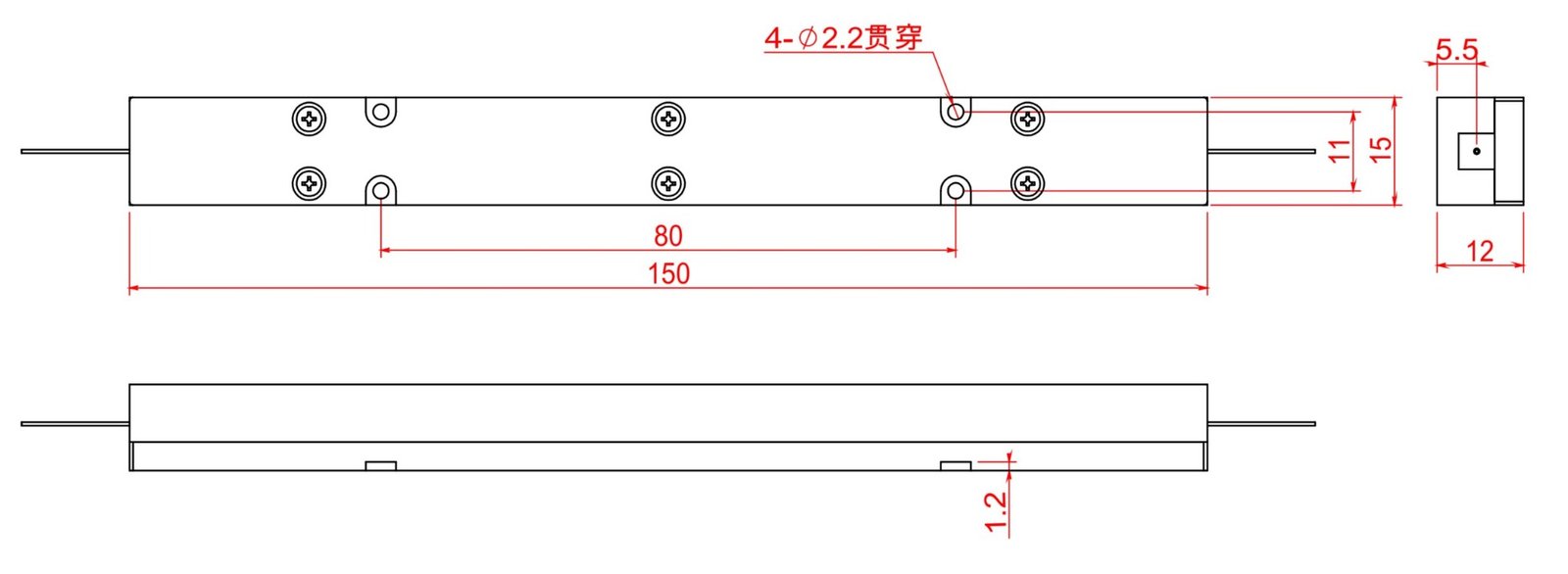

4.0 espesifikasyon mekanik ak desen
| Atik | Espesifikasyon | Inite | Nòt | |
| 4.01 | Dimansyon Modil la | 150 * 15 * 12 | mm | Fwad kondiksyon anba a |
 |
||||
5.0 Kòmanse enfòmasyon
| HSP-① -② -③ -④ -⑤ -⑥ / ⑦ -⑧ / ⑧ -⑨ | ||
| ① : Port konbinezon | ② : siyal pwopagasyon direksyon | ③ : Ponp kalite fib |
| 61 - (6 + 1) 1 181 - (18 + 1) 1 |
F - Forward B - bak |
M01 - 105/125 , 0.22NA M03 - 135/155, 0.22NA ect. |
| ④ : siyal opinyon kalite fib | ⑤ : siyal pwodiksyon kalite fib | ⑥ : Ponp pouvwa pou chak pò |
| D17 - 20/400 DCF, 0.06NA D07 - 25/400 DCF, 0.06NA D08 - 30/400 DCF, 0.06NA ect. |
D03 - 20/250 DCF, 0.06NA D04 - 25/250 DCF, 0.06NA D05 - 30/250 DCF, 0.06NA ect. |
200 - 200W 400 - 400W 600 - 600W ect. |
| ⑦ : manipilasyon pouvwa siyal | ⑧ / ⑧ : Antre / longè fib Sòti | ⑨ : Pake kalite |
| 1.0 - 1000W 1.5 - 1500W 2.0 - 2000W 3.0 - 3000W 5.0 - 5000W ect. |
1.0-1.0m 1.5-1.5m Default 2.0-2.0m ect. |
A - Aliminyòm pake 150 * 15 * 12 S - Espesifye |
| Pa egzanp : HSP-61-B-M03-D17-D03-400 / 2.0-1.5 / 1.5-A | ||
