Oloa Faamatalaga

Faamatalaga

1. Vaaiga lautele

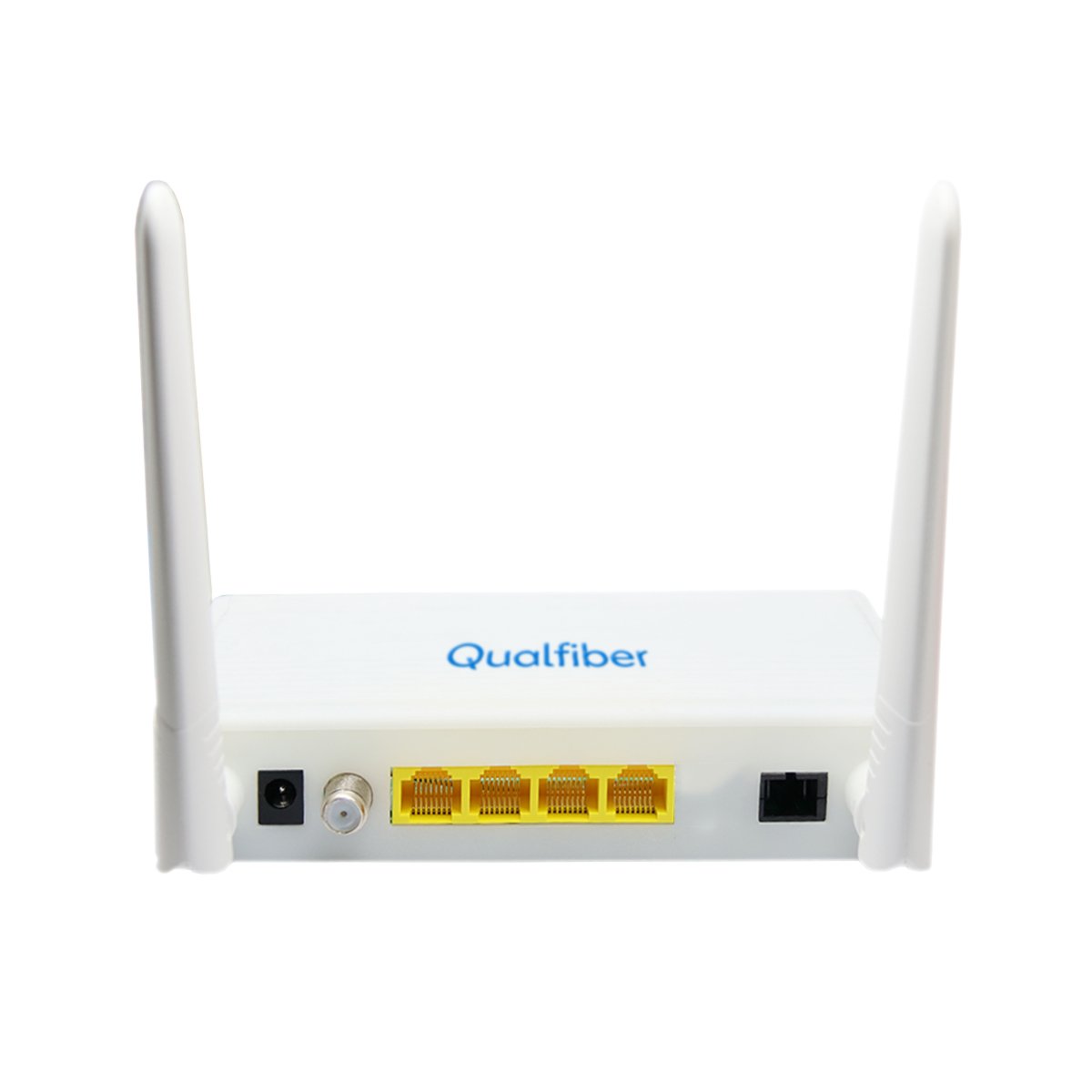

O le 1G3F + WIFI + CATV ONU ua mamanuina e avea o HGU (Fale Gateway Unit) i le faʻaaogaina fofo FTTH e Qualfiber, O le taʻitaʻi-vasega FTTH talosaga e maua ai auaunaga avanoa avanoa.
1G3F + WIFI + CATV ONU e faʻavae i luga o le matua ma le mautu, tau-lelei EPON tekonolosi. E mafai ona oʻo atu i le vaega tele EPON OLT.
1G3F + WIFI + CATV ONU faʻaaogaina le maualuga faʻatuatuaina, faigofie pulega, faʻatulagaina fetuutuunai ma lelei le lelei o le tautua (QoS) faʻamaoniga e fetaui ma le faʻatinoga faʻatino o le vaega o le Saina Telecom EPON CTC3.0.
O le 1G3F + WIFI + CATV ONU ua mamanuina e le Realtek chipset 9603C.

2. Vaega Faigaluega

Lagolago le EPON Mode
Lagolago ONU auto-mauaina / Link mauaina / mamao faʻaleleia o le polokalama
WAN fesoʻotaʻiga lagolago Auala ma Alalaupapa auala
Auala auala lagolagoina PPPoE / DHCP / static IP
Lagolago le WIFI Interface ma tele SSID
Lagolago Qo S ma DBA
Lagolago taulaga Isi ma taulaga v lan
Lagolago Firewall galuega ma IGMP snooping multicast foliga
Lagolago LAN IP ma DHCP Server faʻatulagaina;
Lagolago CATV Ofisa mo Vitio Auaunaga
Lagolago Port Forwarding ma Loop-Vaaia
Lagolago TR069 maotua faʻatulagaina ma tausiga
Faʻapitoa faʻataʻitaʻiga mo le puipuia o le malepe faiga e faʻatumauina ai le lelei

3. Fuafuaga o masini

Aitema vaega	Auiliiliga
PON Ofisa	1 EPON taulaga (EPON PX20 +)
	Mauaina lagona lelei: sensitivity-28dBm
	Tuuina atu o malosiaga eletise: 0 ~ + 4dBm
	Auina atu mamao: 20KM
Galu umi	TX: 1310nm, RX: 1490nm
Opitika Ofisa	SC / UPC Connector pe faʻapitoa
LAN Ofisa	1 x 10/100 / 1000Mbps ma 3 x 10 / 100Mbps otometi fetuunai Ethernet Ofisa. Atoa / afa, RJ45 fesoʻotaʻiga
CATV Faʻamatalaga	RF, mana e mafai ai: + 2 ~ -18dBm Vaʻaia le mafaufau leiloa leiloa: d45dB Optical mauaina wavelength: 1550 ± 10nm RF tele taimi: 47 ~ 1000MHz, RF gaioiga faʻaletonu: 75Ω RF galuega faatino tulaga: 78dBuV AGC tele: 0 ~ -15dBm MER: ≥32dB @ -15dBm
Lelei	Vaʻaia toe leiloa le mafaufau: ≥45dB Manatua mauaina wavelength: 1550 ± 10nm Tele taimi RF: 47 ~ 1000MHz, RF galuega faatino faʻaosofia: 75Ω RF galuega faatino tulaga: 78dBuV AGC tele: 0 ~ -15dBm MER: ≥32dB @ -15dBm Modulation ituaiga: DSSS, CCK ma OFDM Encoding polokalame: BPSK, QPSK, 16QAM ma 64QAM
LELEI	9, Mo Tulaga o MANA , LEAGA , PON , SYS , LAN1, LAN2, WIFI, WPS, Initoneti
Tulei-Faamau	3, Mo le Galuega Faʻatonu Res WLAN 、 WPS
Gaoioiga Tulaga	Vevela: 0 ℃ ~ + 50 ℃
Gaoioiga Tulaga	Sūsū: 10% ～ 90% （le faʻamalosia)
Teuina o Tulaga	Vevela: -30 ℃ ~ + 60 ℃
Teuina o Tulaga	Lona Vevela: 10% ~ 90% （le faʻamalosia)
Paoa sapalai	DC 12V / 1A
Taumafaina mana	≤6W
Vaʻaiga	155mm × 92mm × 34mm, L × W × H )
Upega Upega	0.24 kilokalama

4. Moli moli Ou te fauina atu

Le pailate lamepa	Tulaga	Faamatalaga
PWR	Onā	Ua fafaga le masini.
PWR	Leai	O le masini e alu i lalo.
PON	Onā	Ua faʻamauina le masini ile PON polokalama.
	Tauaso	O le masini o loʻo faʻamauina le polokalama ole PON.
	Leai	E sese le lesitala masini.
Los	Tauaso	E le mauaina e le masini ni mea faʻaliʻi.
Los	Leai	Ua mauaina le masini le faʻaali ata.
SYS	Onā	Le masini faiga tamoʻe masani.
SYS	Leai	Le masini faiga tamoʻe le masani ai.
Initaneti	Tauaso	O le masini fesootaiga fesootaiga o se mea masani.
Initaneti	Leai	O le masini fesoʻotaʻiga soʻotaga e le masani ai.
WIFI	Onā	O le WIFI Ofisa o loʻo i luga.
	Tauaso	O le WIFI Ofisa o le lafoina poʻo / ma le mauaina o faʻamaumauga (ACT).
	Leai	O le WIFI Ofisa o loʻo i lalo.
WPS	Tauaso	Ole fesoʻotaʻiga a le WIFI o loʻo faia ma le saogalemu le soʻotaga.
WPS	Leai	Ole WIFI interface e le faʻatuina se soʻotaga malu.
LAN1 ~ LAN2	Onā	Port (LANx) ua fesoʻotaʻi lelei (LINK).
	Tauaso	Port (LANx) o loʻo lafoina poʻo / ma mauaina faʻamatalaga (ACT).
	Leai	Port (LANx) sootaga tuʻuaiga pe le fesoʻotaʻi.
Fusia (CATV)	Onā	E sili atu le sao o loʻo faʻaogaina i le eletise e sili atu nai lo le 3dbm pe i lalo ifo o le -13dbm
Fusia (CATV)	Leai	Ulufale mana eletise i le va o -13dbm ma 3dbm
Masani (CATV)	Onā	Ulufale mana eletise i le va o -13dbm ma 3dbm
Masani (CATV)	Leai	E sili atu le sao o loʻo faʻaogaina i le eletise e sili atu nai lo le 3dbm pe i lalo ifo o le -13dbm

5. Talosaga

Fofo masani : FTTO (Ofisa) , FTTB (Fale) , FTTH (Fale)
Masani pisinisi : Initaneti, IPTV , IP mea pueata ma isi

Okaina faamatalaga

Oloa Igoa	Oloa Faataʻitaʻiga	Faʻamatalaga
SFF Ituaiga EPON ONU	1G + 3F + WIFI + CATV	1 × 10/100 / 1000Mbps Ethernet, 3 x 10 / 100Mbps Ethernet, 1 SC Connector, 1x CATV port, 2.4GHz WIFI, Plastic Casing, External power supply adapter
